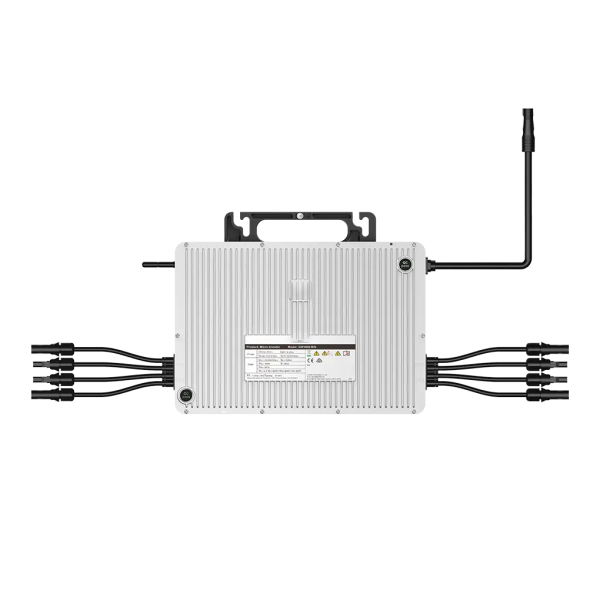

MP-MIS Series 1.6-2kW Single Phase Microinverter-5174

Smart Module‑Level Power for Residential & Small Commercial PV

The China Moneypro MIS Series is a microinverter solution designed for residential rooftops, balconies, and small commercial solar systems. Each microinverter supports up to four PV modules with individual MPPT tracking, enhancing energy capture at the panel level and minimizing mismatch losses. Built‑in Wi‑Fi and Bluetooth make setup and operation simple, while module‑level monitoring gives real‑time visibility into system performance and faults.

Module‑Level MPPT for Maximum Yield

Continuous Power Production

• 4 module‑level MPPT trackers allow each panel to operate independently for optimized energy capture.

• Low DC start‑up voltage (~22 V) helps capture energy even in low‑light conditions.

Benefits:

• Maximizes energy harvest from each PV panel.

• Reduces power losses from module mismatch or shading.

• Early morning and late evening generation enabled.

Intelligent Operation & Monitoring

Real‑Time Insight & Connectivity

• Built‑in Wi‑Fi and Bluetooth enable fast setup and real‑time monitoring without additional hardware.

• Module level monitoring lets you quickly identify performance issues or underperforming panels.

Advantages:

• Better visibility over individual module performance.

• Simplified installation and maintenance through wireless connectivity.

• Enhanced fault diagnosis and energy tracking.

Reliable & Safe Design

Built‑In Protection & Outdoor Durability

• Max. DC voltage 60 V minimizes high‑voltage DC risk for safer rooftop operation.

• IP67 ingress protection ensures resistance to dust, rain, and harsh environments.

• Integrated grid protection relay helps maintain grid stability and safety.

Benefits:

• Safer low‑voltage architecture for residential settings.

• Long‑lasting performance in outdoor conditions.

• Robust protection against environmental and electrical risks.

Why Choose China Moneypro MIS Series?

• Module‑Level MPPT: Four independent MPPT trackers maximize energy from each panel.

• Intelligent Connectivity: Built‑in Wi‑Fi & Bluetooth simplify setup and monitoring.

• Safe & Low‑Voltage: Max. 60 V DC limits electrical hazard risks.

• Durable Outdoor‑Ready Design: IP67 protects against dust and rain.

• Wide Compatibility: Works seamlessly with standard residential PV modules and systems.

Key Specifications

(Values shown are representative of the series and specific models)

• Series Power Range: ~1.6 kW – 2.0 kW (depending on model)

• Max. DC Input Voltage: 65 V

• Max. DC Input Current: 4 × 16 A (per model)

• MPP Trackers: 4 independent MPPTs

• Startup DC Voltage: ~22 V

• Max. Efficiency: ~96.4 %

• Nominal AC Voltage: 220/230/240 V (L/N/PE)

• Protection Rating: IP67 (dust & water resistant)

• Weight: ~6 kg per unit

Typical Applications

• Residential Rooftop Solar Systems: Ideal for homes with multiple PV modules.

• Balcony PV Installations: Compact and plug‑and‑play for small spaces.

• Module‑Level Monitoring: Great for detecting underperformance or shading issues.

• Low DC Voltage Safety: Suitable for environments requiring enhanced electrical safety.

FAQ – Common Questions

Q1: What does 4 MPPT mean for MIS Series?
Each inverter processes four independent MPPTs, allowing each connected PV panel to track and optimize its own power output.

Q2: Is this series suitable for outdoor use?
Yes — with IP67 protection, it’s designed to withstand dust, rain, and harsh weather conditions.

Q3: How safe is the low voltage design?
The maximum DC voltage is 60 V, significantly reducing the risk typically associated with high DC voltages.

Q4: Can I monitor each panel’s performance?
Yes — module‑level monitoring with real‑time data helps identify underperforming panels or faults.

Q5: What communication options are supported?
Built‑in Wi‑Fi and Bluetooth simplify setup and ongoing monitoring.
