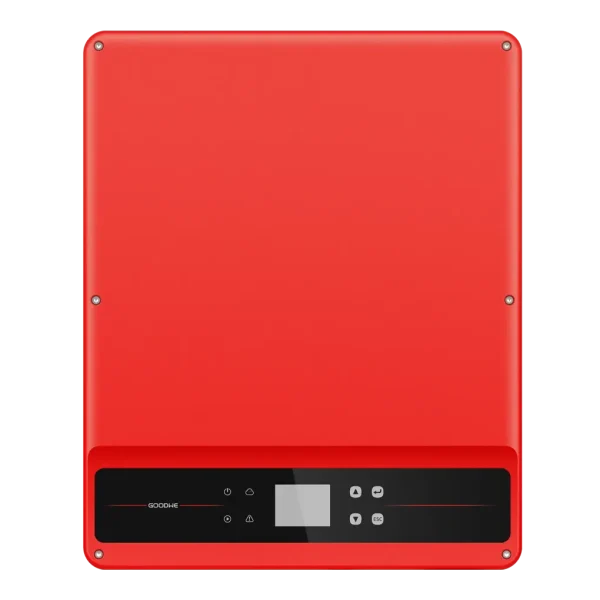

MP-LVSMT Series 12-35kW | Three Phase Inverter-4099

MP-LVSMT Series 12-35kW | Three Phase Inverter-4099

The China Moneypro LVSMT Series is a versatile three‑phase string solar inverter designed for low‑voltage commercial rooftop installations. Engineered for high energy yield and simplified system deployment, it supports a wide range of PV configurations and delivers reliable performance for small to medium‑scale commercial PV systems.

Category:

Share your love

Efficient, Flexible & Cost‑Effective Commercial Inverter

The China Moneypro LVSMT Series is a versatile three‑phase string solar inverter designed for low‑voltage commercial rooftop installations. Engineered for high energy yield and simplified system deployment, it supports a wide range of PV configurations and delivers reliable performance for small to medium‑scale commercial PV systems.

Maximize Solar Harvest & Performance

Capture More Solar Energy

  • Supports up to 130 % DC oversizing for larger PV array capacity and increased energy capture.

  • Wide MPPT voltage range (200 V–650 V) enables early system start and maximizes power generation throughout the day.

  • Up to 6 independent MPPTs with high input current capability (up to 15 A per string) for flexible PV layouts.

  • High energy conversion efficiency up to ~98.8 % for strong PV utilization.

Benefits:

  • Enhanced daily solar generation and improved system return on investment.

  • Strong compatibility with high‑power PV modules and varied commercial installations.

Smart Design & Low Maintenance

Thoughtful Engineering for Commercial Use

  • Fuse‑free design eliminates consumable parts for reduced maintenance time and cost.

  • String‑level monitoring enables detailed visibility into PV string performance for proactive O&M.

  • Compact, lightweight form facilitates easier installation and reduced lifecycle costs.

Advantages:

  • Simplified system operation and reduced maintenance burden.

  • Clear performance insights for optimized energy production and uptime.

Durable & Reliable Protection

Built‑In Safeguards

  • IP65 ingress protection provides strong resistance to dust and water for rugged outdoor environments.

  • Stable performance across diverse conditions with robust electrical design.

  • Compatible with 220 V nominal output and appropriately matched for commercial grid standards.

Benefits:

  • Reliable long‑term operation in commercial rooftop and industrial installations.

  • Peace of mind with high‑standard environmental resistance.

Why Choose China Moneypro LVSMT Series?

  • High PV Yield: Wide MPPT range and 130 % oversizing support maximize energy generation.

  • Multiple MPPT Trackers: Up to 6 independent MPPTs for flexible PV configurations.

  • Low Maintenance: Fuse‑free design reduces operating costs.

  • Strong Durability: IP65 protection with string‑level monitoring and commercial‑grade reliability.

  • Commercial‑Ready: Suitably engineered for low‑voltage commercial rooftop systems.

Typical Applications

  • Commercial Rooftop Solar: Optimal for retail buildings, warehouses, and business rooftops.

  • Small & Medium‑Scale C&I Systems: Reliable inverter for commercial grid‑tied installations.

  • Flexible PV Layouts: Ideal for systems requiring multiple MPPTs and varied string arrangements.

  • Low‑Voltage Grid Markets: Designed for regional grid requirements with transformer‑less simplicity.

FAQ – Common Questions

Q1: What power range does the LVSMT Series cover?
The China Moneypro LVSMT Series covers 12 kW to 35 kW three‑phase commercial string inverter options.

Q2: How many MPPTs are supported?
Depending on the model, it supports up to 6 independent MPPTs for flexible PV configurations.

Q3: What PV oversizing capability does it offer?
It supports up to 130 % DC oversizing to accommodate larger PV arrays.

Q4: Is the inverter suitable for outdoor installation?
Yes — with IP65 ingress protection, it’s built for outdoor commercial rooftop environments.

Q5: Does it offer monitoring features?
Yes — it includes string‑level monitoring for detailed performance insights and proactive maintenance.

Specifications

Item GW12KLV‑MT GW15KLV‑MT GW20KLV‑MT GW30KLS‑MT GW35KLS‑MT
Input
Max. Input Voltage (V) 800 800 800 800 800
MPPT Operating Voltage Range (V) 200 ~ 650 200 ~ 650 200 ~ 650 200 ~ 650 200 ~ 650
Start‑up Voltage (V) 180 180 180 180 180
Nominal Input Voltage (V) 370 370 370 370 370
Max. Input Current per MPPT (A) 30 30 30 30 30
Max. Short Circuit Current per MPPT (A) 37.5 37.5 37.5 37.5 37.5
Number of MPP Trackers 3 3 3 5 6
Number of Strings per MPPT 2 2 2 2 2
Output
Nominal Output Power (kW) 12.0 15.0 20.7 30.0 35.0
Nominal Output Apparent Power (kVA) 12.0 15.0 20.7 30.0 35.0
Max. AC Active Power (kW) 11.3@208V / 12.0@220V / 13.1@240V 14.4@208V / 15.0@220V / 16.6@240V 19.6@208V / 20.7@220V / 22.6@240V 30.0 35.0
Max. AC Apparent Power (kVA) 13.1 16.6 22.6 30.0 35.0
Nominal Output Voltage (V) 220, 3L/N/PE or 3L/PE 220, 3L/N/PE or 3L/PE 220, 3L/N/PE or 3L/PE 220, 3L/N/PE or 3L/PE 220, 3L/N/PE or 3L/PE
Output Voltage Range (V) 150 ~ 300 150 ~ 300 150 ~ 300 176 ~ 242 176 ~ 242
Nominal AC Grid Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
AC Grid Frequency Range (Hz) 47.5 ~ 51.5 / 57.0 ~ 61.8 47.5 ~ 51.5 / 57.0 ~ 61.8 47.5 ~ 51.5 / 57.0 ~ 61.8 47.5 ~ 51.5 / 57.0 ~ 61.8 47.5 ~ 51.5 / 57.0 ~ 61.8
Max. Output Current (A) 31.5 40.0 54.5 80.0 96.0
Power Factor ~1 (Adjustable 0.8L‑0.8C) ~1 (Adjustable 0.8L‑0.8C) ~1 (Adjustable 0.8L‑0.8C) ~1 (Adjustable 0.8L‑0.8C) ~1 (Adjustable 0.8L‑0.8C)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 98.7% 98.7% 98.8% 98.0% 98.0%
European Efficiency 98.4% 98.5% 98.5% 97.7% 97.7%
Protection
PV String Current Monitoring Integrated Integrated Integrated Integrated Integrated
PV Insulation Resistance Detection Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Integrated Integrated Integrated Integrated Integrated
PV Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated
Anti‑islanding Protection Integrated Integrated Integrated Integrated Integrated
AC Overcurrent Protection Integrated Integrated Integrated Integrated Integrated
AC Short Circuit Protection Integrated Integrated Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated Integrated Integrated
DC Surge Protection Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional)
AC Surge Protection Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional) Type III (Type II Optional)
AFCI Optional Optional Optional Optional Optional
Remote Shutdown Optional Optional Optional Optional Optional
PID Recovery Optional Optional Optional Optional Optional
General Data
Operating Temperature Range (°C) –30 ~ +60 –30 ~ +60 –30 ~ +60 –30 ~ +60 –30 ~ +60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Max. Operating Altitude (m) 3000 3000 3000 3000 3000
Cooling Method Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling
User Interface LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP
Communication RS485, WiFi or 4G or PLC (Optional) RS485, WiFi or 4G or PLC (Optional) RS485, WiFi or 4G or PLC (Optional) RS485, WiFi or 4G or PLC (Optional) RS485, WiFi or 4G or PLC (Optional)
Communication Protocols Modbus‑RTU (SunSpec) Modbus‑RTU (SunSpec) Modbus‑RTU (SunSpec) Modbus‑RTU (SunSpec) Modbus‑RTU (SunSpec)
Weight (kg) 40.0 40.0 40.0 55.0 55.0
Dimension (W × H × D mm) 480 × 590 × 200 480 × 590 × 200 480 × 590 × 200 520 × 660 × 220 520 × 660 × 220
Noise Emission (dB) <60 <60 <60 <65 <65
Topology Non‑isolated Non‑isolated Non‑isolated Non‑isolated Non‑isolated
Self‑consumption at Night (W) <1 <1 <1 <1 <1
Ingress Protection Rating IP65 IP65 IP65 IP65 IP65
DC Connector MC4 (4~6 mm²) MC4 (4~6 mm²) MC4 (4~6 mm²) MC4 (4~6 mm²) MC4 (4~6 mm²)
AC Connector OT/DT Terminal (Max.25 mm²) OT/DT Terminal (Max.25 mm²) OT/DT Terminal (Max.25 mm²) OT/DT Terminal (Max.50 mm²) OT/DT Terminal (Max.50 mm²)
