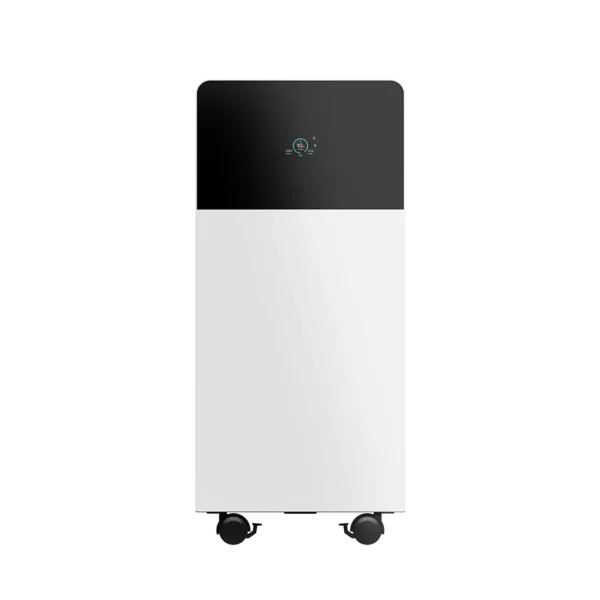

MP-Fidus Battery Plus-2196

MP-Fidus Battery Plus-2196

The China Moneypro Fidus Battery Plus is a high-performance residential lithium energy storage battery designed for modern home energy systems. Featuring robust safety protection, flexible installation, and intelligent monitoring capabilities, the system provides reliable backup power and optimized solar self-consumption for residential applications.

Category:

Share your love

Superior Safety & Reliable Performance

Multi-Layer Protection Design

  • Built-in multi-layer protection architecture for enhanced system safety
  • Optional integrated fire suppression module
  • Resistant to dust, water jet, and salt-spray environments
  • Designed for extreme cold region operation

Benefits:

  • Improved operational safety
  • Reliable performance in harsh environments
  • Long-term stable energy storage

High Capacity & Long Lifecycle

Powerful Residential Energy Storage

  • Nominal Capacity: 16.07 kWh
  • Nominal Voltage: 51.2 V
  • Depth of Discharge: 100 % DoD
  • Cycle Life: Up to 8000 cycles
  • Design Life: 15 years

Advantages:

  • Long lifespan for residential applications
  • Higher usable energy
  • Lower lifetime system cost

Flexible Installation & Expandable Design

Adaptable to Multiple Installations

  • Wall-mounted or floor-standing installation
  • Maximum 20 batteries per group
  • Up to 6 battery strings supported
  • Natural cooling design for silent operation

Benefits:

  • Flexible deployment for residential homes
  • Scalable capacity expansion
  • Quiet operation

Intelligent Monitoring & Smart Control

Smart Battery Management

  • Integrated Battery Management System (BMS)
  • APP monitoring & LED display
  • Supports CAN and RS485 communication
  • Optional Wi-Fi and Bluetooth connectivity

Advantages:

  • Real-time battery monitoring
  • Remote system management
  • Intelligent energy optimization

Durable & Industrial-Grade Design

Built for Harsh Environments

  • Protection Rating: IP65
  • Anti-corrosion rating: C5-M
  • Operating temperature range: -20 ??C to 60 ??C
  • Altitude support: ??4000 m
  • Humidity range: 5-95 % RH

Benefits:

  • Outdoor-ready design
  • Long-term durability
  • Reliable performance in extreme environments

Why Choose China Moneypro Fidus Battery Plus?

  • High Capacity: 16.07 kWh residential battery
  • Long Lifespan: Up to 8000 cycles
  • Flexible Installation: Wall or floor mounting
  • Expandable Design: Up to 20 batteries per group
  • Smart Monitoring: APP and remote control
  • Industrial Protection: IP65 rated enclosure

Key Specifications

  • Nominal Voltage: 51.2 V
  • Nominal Capacity: 16.07 kWh
  • Usable Capacity: 16.07 kWh
  • Depth of Discharge: 100 %
  • Cycle Life: 8000 cycles
  • Communication: CAN / RS485
  • Protection Rating: IP65
  • Cooling Method: Natural Cooling
  • Installation: Wall-mounted / Floor-standing
  • Operating Temperature: -20 ??C to 60 ??C
  • Design Life: 15 Years

Typical Applications

  • Residential Solar Energy Storage
  • Home Backup Power
  • Off-Grid Energy Systems
  • Self-Consumption Optimization
  • Micro-Grid Applications

FAQ ?C Common Questions

Q1: What is the battery capacity?
The China Moneypro Fidus Battery Plus offers 16.07 kWh nominal capacity.

Q2: How long is the battery lifespan?
The battery supports up to 8000 cycles with 15-year design life.

Q3: Is the battery suitable for outdoor installation?
Yes, the battery features IP65 protection for outdoor use.

Q4: Can the battery system be expanded?
Yes, up to 20 batteries per group and 6 strings are supported.

Q5: What communication protocols are supported?
The system supports CAN and RS485 communication.

Specifications

Nominal Voltage (VDC) 51.2
Battery Module Capacity (Wh) 16076
Usable Capacity (Wh)* 16076
Depth of Discharge (%)* 100
Dimensions (mm) 435(W)*240(D)*900(H)
Weight (Kg) 130kg
Discharge Voltage (Vdc) 40 ~ 56.8
Charge Voltage (Vdc) 56 ~ 56.8
Maximum Continuous Charge/Discharge Current (A) 180/200
Peak Charge/Discharge Current (A) 300A@15s
Communication CAN，RS485
Configuration (maximum quantity in one battery group)* 20
Configuration (maximum strings)** 6
Storage Temperature (℃) -20 ~ 60
Working Temperature (°C ) ***charging: -20 ~ 55
Working Temperature (°C ) ***discharging: -20 ~ 55
Cooling Type Natural
Cycle life @25℃ 8000
Protective Class I
IP Rating of Enclosure IP65
Anti-corrosion C5-M
Humidity(%, RH, No Condensation) 5 ~ 95
Altitude(m) ≤4000
Certifications IEC62619、 IEC63056、UN38.3、 EMC/CE
Design Life (year) (25°C /77℉) 15
Cycle Life (25°C /77℉) ù* 8000
Interaction Display screen、Bluetooth and WIFI
Fire extinguishing Aerosol (Optional)
Nominal Voltage (Vdc) 51.2
Nominal Capacity (Wh) 16076
Usable Capacity (Wh)* 16076
Depth of Discharge (%)* 100
Dimensions (mm) 435(W)*240(D)*900(H)
Weight (Kg) 130kg
Discharge Voltage (Vdc) 40 ~ 56.8
Charge Voltage (Vdc) 56 ~ 56.8
Maximum Continuous Charge/Discharge Current (A) 180/200
Peak Charge/Discharge Current (A) 300A@15s
Communication CAN，RS485
Configuration (maximum quantity in one battery group)* 20
Configuration (maximum strings)** 6
Working Temperature (°C ) ***charging: 0~55
Working Temperature (°C ) ***discharging: -20~60
Storage Temperature (°C) -20 ~ 60
Cooling Type Natural
Protective Class I
IP Rating of Enclosure IP65
Anti-corrosion C5-M
Certifications IEC62619、 IEC63056、UN38.3、 EMC/CE
Design Life (year) (25°C /77℉) 15
Cycle Life (25°C /77℉) ù* 8000
Interaction Display screen、Bluetooth and WIFI
Fire extinguishing Aerosol (Optional)
Nominal Voltage (VDC) 51.2
Battery Module Capacity (Wh) 16076
Usable Capacity (Wh)* 16076
Depth of Discharge (%)* 100
Dimensions (mm) 435(W)*240(D)*900(H)
Weight (Kg) 130
Discharge Voltage (Vdc) 40~56.8
Charge Voltage (Vdc) 56~56.8
Maximum Continuous Charge/Discharge Current (A) 180/200
Peak Charge/Discharge Current (A) 300A@15S
Communication CAN,RS485
Configuration (maximum quantity in one battery group)* 20
Configuration (maximum strings)** 6
Storage Temperature (℃) -20~60
Working Temperature (°C ) ***charging: 0~60
Working Temperature (°C ) ***discharging: -20~60
Cooling Type Natural
Cycle life @25℃ 8000
Protective Class I
IP Rating of Enclosure IP20
Anti-corrosion C5-M
Humidity(%, RH, No Condensation) 5~95
Altitude(m) ≤4000
Certifications IEC62619、 IEC63056、UN38.3、 EMC/CE
Design Life (year) (25°C /77℉) 15
Cycle Life (25°C /77℉) 8000
Interaction Display screen、Bluetooth and WIFI
Fire extinguishing Aerosol (Optional)
