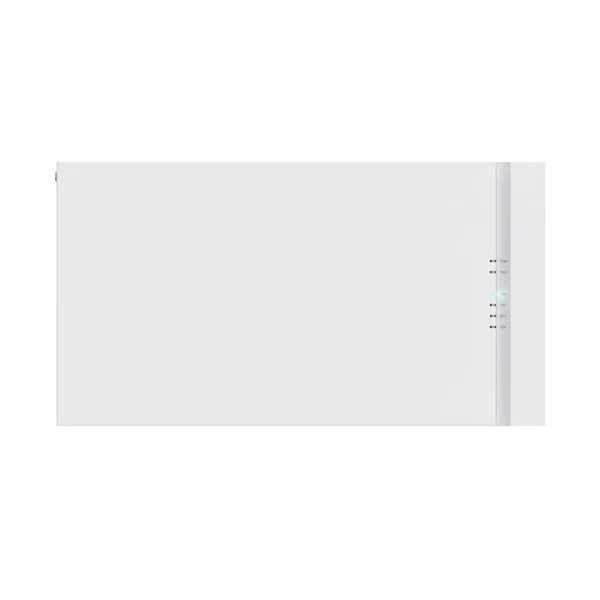

MP-Fidus Battery-6843

Efficient Performance & High Power Output

High-Performance Energy Storage

• Continuous 1C charge/discharge rate for strong power output
• Peak 2C discharge (15s) for high-load appliances
• Up to 97% depth of discharge (DoD) for maximum energy utilization
• 51.2 V system architecture for stable performance

Benefits:

• Higher energy utilization
• Reliable performance during high-load operation
• Stable power delivery for residential applications

Flexible Expansion & Scalable Capacity

Modular Design for Flexible Deployment

• Single battery capacity: 5.12 kWh
• Usable capacity: ~4.86 kWh
• Supports up to 20 modules per string
• Supports up to 6 groups in parallel
• Expandable from 5 kWh to 600 kWh

Advantages:

• Flexible configuration for different home sizes
• Scalable for residential and small commercial systems
• Easy system expansion in the future

Intelligent Management & Wide Compatibility

Smart Monitoring & Integration

• Compatible with 50+ inverter brands
• Communication protocols: RS485 / CAN
• Intelligent Battery Management System (BMS)
• Remote monitoring and system diagnostics

Benefits:

• Easy integration with existing solar systems
• Intelligent energy management
• Stable and safe operation

Durable & Safe Design

Engineered for Harsh Environments

• IP65 protection rating for indoor/outdoor installation
• C5-M anti-corrosion protection
• Operating temperature: -10°C to 55°C (optional -20°C version)
• Natural cooling design for reliable operation

Advantages:

• Suitable for harsh environments
• Long-term reliability
• Enhanced safety performance

Why Choose China Moneypro Fidus Battery?

• High Performance: Continuous 1C charge/discharge capability
• Flexible Expansion: Scalable from 5 kWh to 600 kWh
• Smart Management: Intelligent BMS with remote monitoring
• Wide Compatibility: Works with 50+ inverter brands
• Durable Design: IP65 protection and anti-corrosion design

Key Specifications

• Nominal Voltage: 51.2 V
• Battery Capacity: 5.12 kWh
• Usable Capacity: ~4.86 kWh
• Depth of Discharge: Up to 97%
• Communication: RS485 / CAN
• Protection Rating: IP65
• Operating Temperature: -10°C to 55°C
• Cycle Life: >6,000 cycles
• Design Life: 10 years
• Parallel Support: Up to 6 groups
• Max Modules per String: 20 units

Typical Applications

• Residential Solar Storage — Store excess solar power
• Backup Power Systems — Emergency household power
• Off-Grid Systems — Independent energy solutions
• Small Commercial Systems — Flexible power deployment

FAQ – Common Questions

Q1: What is the capacity of a single module?
Each module provides 5.12 kWh nominal capacity.

Q2: How scalable is the system?
The system supports up to 20 modules per string and 6 parallel groups.

Q3: Is it suitable for outdoor installation?
Yes, the system features IP65 protection for indoor and outdoor installation.

Q4: What inverter brands are supported?
The system is compatible with 50+ inverter brands.

Q5: What is the cycle life?
The battery supports over 6,000 cycles at standard conditions.
