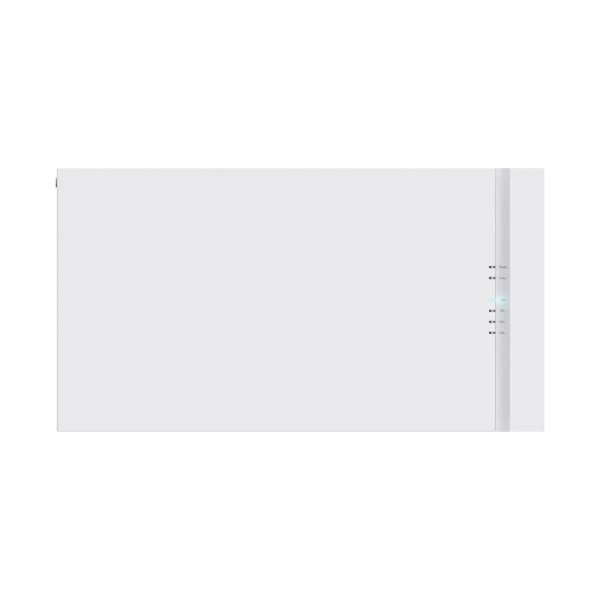

MP-Fidus Battery-2536

High Performance & Reliable Energy Storage

Stable & Long-Life Battery Technology

• Advanced LiFePO? (LFP) battery technology for enhanced safety and long lifespan
• 51.2V nominal voltage for residential energy storage systems
• 5.12 kWh nominal capacity with high usable energy output
• 6000+ cycles @ 97% DOD for long service life

Benefits:

• Long battery lifespan and reduced maintenance cost
• Reliable energy storage performance for daily usage

Flexible & Scalable Modular Design

Expandable Energy Capacity

• Stackable modular design for flexible capacity expansion
• Support for multiple battery modules in parallel
• Compact floor-standing installation design
• Lightweight and compact structure for residential applications

Advantages:

• Flexible energy storage capacity
• Suitable for different household energy needs

Intelligent Battery Management System

Smart Monitoring & Communication

• Built-in Battery Management System (BMS)
• Communication interfaces: CAN / RS485
• Real-time battery monitoring and protection
• Intelligent balancing and safety protection

Benefits:

• Stable system performance
• Enhanced safety and battery lifespan

Durable & Safe Design

Engineered for Residential Use

• Wide operating temperature range: -10??C to +55??C
• Storage temperature range: -20??C to +60??C
• High altitude support up to 4000 m
• Industrial-grade battery protection design

Advantages:

• Reliable operation in various environments
• Long-term stable performance

Why Choose China Moneypro Fidus?

• Long Lifespan: 6000+ cycles LiFePO? battery
• Flexible Expansion: Modular stackable design
• High Reliability: Integrated BMS protection
• Smart Communication: CAN & RS485 supported
• Safe Technology: Stable lithium iron phosphate battery

Key Specifications

• Battery Type: LiFePO? (LFP)
• Nominal Voltage: 51.2 V
• Nominal Capacity: 100 Ah
• Nominal Energy: 5.12 kWh
• Usable Energy: 4.86 kWh
• Cycle Life: 6000 cycles @97% DOD
• Max Charge Current: 100 A
• Max Discharge Current: 100 A
• Communication: CAN / RS485
• Installation: Floor-mounted
• Weight: 45 kg
• Dimensions: 165 ?? 630 ?? 360 mm
• Operating Temperature: -10??C to +55??C

Typical Applications

• Residential Solar Storage
• Home Backup Power
• Self-Consumption Optimization
• Off-Grid Solar Systems
• Hybrid Solar Energy Systems

FAQ ?C Common Questions

Q1: What battery technology does the system use?
China Moneypro Fidus uses LiFePO? battery technology for enhanced safety and lifespan.

Q2: What is the capacity of one battery module?
Each module provides 5.12 kWh nominal capacity.

Q3: Can the battery be expanded?
Yes, the system supports stackable modular expansion.

Q4: What communication protocols are supported?
The system supports CAN and RS485 communication.

Q5: What is the cycle life of the battery?
The battery provides 6000+ cycles at 97% DOD.
