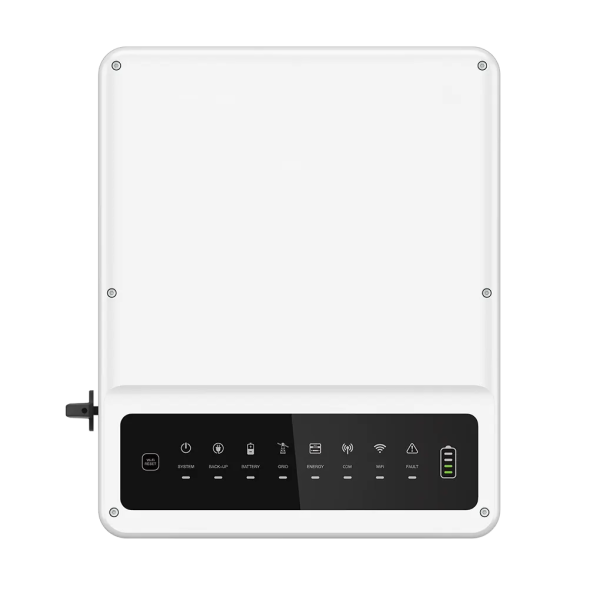

MP-EH Plus+ Series 3.6-6kW Single Phase Energy Storage Inverter Battery Ready (HV)-2221

MP-EH Plus+ Series 3.6-6kW Single Phase Energy Storage Inverter Battery Ready (HV)-2221

The China Moneypro EH PLUS+ Series is a 3.6 ~ 6 kW single-phase hybrid inverter engineered for residential solar + storage applications. Its “Battery Ready” design enables future expansion by simply activating energy storage functionality with an activation code. Compatible with high-voltage Li-Ion batteries (85 ~ 460 V), it features UPS-equivalent switching in less than 10 ms to provide reliable backup power without interruption. With 150 % DC oversizing, peak shaving, and smart load control, EH PLUS+ enhances solar self-consumption and supports optimized energy use. Safe, flexible, and efficient, it helps bring more solar power to your home.

Category:

Share your love

Intelligent Residential Energy Storage Solution

The China Moneypro EH PLUS+ Series is a 3.6 ~ 6 kW single-phase hybrid inverter engineered for residential solar + storage applications. Its “Battery Ready” design enables future expansion by simply activating energy storage functionality with an activation code. Compatible with high-voltage Li-Ion batteries (85 ~ 460 V), it features UPS-equivalent switching in less than 10 ms to provide reliable backup power without interruption. With 150 % DC oversizing, peak shaving, and smart load control, EH PLUS+ enhances solar self-consumption and supports optimized energy use. Safe, flexible, and efficient, it helps bring more solar power to your home.

Smart Control for Smart Energy

Seamless Backup & Peak Shaving

  • UPS-level switching in < 10 ms ensures essential loads stay powered during grid disturbances.

  • Smart load control adapts power generation to household consumption.

  • Peak shaving reduces peak demand charges by smoothing high load periods.

Benefits:

  • Helps reduce electricity costs during peak loads.

  • Maintains power continuity for sensitive devices.

  • Matches energy production with real-time consumption.

Flexible & Expandable Applications

Future-Proof Hybrid Design

  • Battery Ready option: Activate energy storage via a simple code, without replacing the inverter.

  • Supports multiple communication protocols for smart home integration and energy monitoring.

  • High-power module compatibility with maximum 16 A DC input per string increases daily energy harvest.

Advantages:

  • Easy upgrade path from on-grid to hybrid storage.

  • Adaptable to changing household energy needs.

  • Works with high-power solar modules for more energy generation.

Robust Safety & Reliable Operation

Durable Protection Design

  • Built-in Type II SPD on the DC side enhances protection against surges and lightning events.

  • IP65 ingress protection ensures resistance to dust and water, suitable for outdoor installation.

  • Fanless, quiet operation provides noise-free performance ideal for residential environments.

Benefits:

  • Reliable safety for long-term operation.

  • Reduced risk of electrical hazards.

  • Quiet and maintenance-friendly design.

Why Choose China Moneypro EH PLUS+ Series?

  • Future-Ready Hybrid: Battery Ready design for effortless storage activation.

  • Smart Load Control: Peak shaving and smart energy management.

  • Uninterrupted Power: UPS-level switching in < 10 ms.

  • High Generation Capacity: 150 % DC input oversizing for greater solar utilization.

  • Robust & Quiet: IP65 protection with silent fanless operation.

Key Specifications

(Only parameters clearly provided on the official page are included)

  • Power Range: 3.6 ~ 6 kW

  • Battery Voltage Range: 85 ~ 460 V

  • Max. Continuous Charging / Discharging Current: 25/25 A

  • Max. DC Input Current per MPPT: 16 A

  • Max. Apparent Power Output to Utility Grid: 3.6 ~ 6 kVA

  • Back-up Nominal Apparent Power: Same as output power

  • Ingress Protection: IP65

  • Built-in SPD Type: Type II on DC side

Typical Applications

  • Residential Rooftops: Hybrid solar + storage for homes.

  • Smart Energy Homes: Tailored peak shaving and backup power support.

  • On/Off-Grid Scenarios: Reliable operation even during grid outages.

  • Flexible Energy Integration: Easy upgrade from on-grid to full ESS systems.

FAQ – Common Questions

Q1: How fast does the EH PLUS+ Series switch to backup mode?
It delivers UPS-equivalent switching in less than 10 ms, ensuring seamless backup power.

Q2: What battery voltage range does it support?
Compatible with high-voltage batteries from 85 V to 460 V for flexible storage options.

Q3: Can it maximize energy production with large PV arrays?
Yes — with 150 % DC input oversizing and 16 A DC per string, it supports high-power modules.

Q4: Is the inverter protected against surges and harsh environments?
Yes — it features built-in Type II SPD and IP65 ingress protection for outdoor durability.

Q5: Does EH PLUS+ support quiet operation?
Yes — it has a fanless design for silent performance, ideal for residential settings.

Specifications

Technical Data GW3600N-EH GW5000N-EH GW6000N-EH
Battery Input Data
Battery Type Li-Ion
Nominal Battery Voltage (V) 350
Battery Voltage Range (V) 85 ~ 460
Start-up Voltage (V) 85
Number of Battery Input 1
Max. Continuous Charging Current (A) 25
Max. Continuous Discharging Current (A) 25
Max. Charging Power (W) 6000
Max. Discharging Power (W) 3600 5000 6000
PV String Input Data
Max. Input Power (W)*1 5400 7500 9000
Max. Input Voltage (V) 580
MPPT Operating Voltage Range (V) 100 ~ 550
Start-up Voltage (V) 85
Nominal Input Voltage (V) 380
Max. Input Current per MPPT (A) 16
Max. Short Circuit Current per MPPT (A) 21.2
Number of MPP Trackers 2
Number of Strings per MPPT 1
AC Output Data (On-grid)
Nominal Output Power (W) 3600 5000 6000
Nominal Apparent Power Output to Utility Grid (VA)*3 3600 5000 6000
Max. Apparent Power Output to Utility Grid (VA)*3 3600 / 3960*2 5000 / 5500*2 6000 / 6600*2
Max. Apparent Power from Utility Grid (VA) 7200 (Charging 3.6kW,
Backup Output 3.6kW)		 10000 (Charging 5kW,
Backup Output 5kW)		 12000 (Charging 6kW,
Backup Output 6kW)
Nominal Output Voltage (V) 230 / 220*6
Nominal AC Grid Frequency (Hz) 50 / 60
Max. AC Current Output to Utility Grid (A) 16 / 18*2 21.7 / 24*2 26.1 / 28.7*2 / 27.3*7
Max. AC Current From Utility Grid (A) 32 43.4 52.2
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA) 3600 5000 6000
Max. Output Apparent Power without Grid (VA) 3600 (4320@60sec) 5000 (6000@60sec) 6000 (7200@60sec)
Max. Output Apparent Power with Grid (VA) 3600 5000 6000
Max. Output Current (A) 15.7 21.7 26.1
Nominal Output Voltage (V) 230 (±2%)
Nominal Output Frequency (Hz) 50 / 60 (±0.2%)
Output THDv (@Linear Load) <3%
Efficiency
Max. Efficiency 97.6%
European Efficiency 97.0%
Max. Battery to AC Efficiency 96.6%
MPPT Efficiency 99.9%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Battery Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
DC Surge Protection Type II
AC Surge protection Type III
Remote Shutdown Integrated
General Data
Operating Temperature Range (°C) -25 ~ +60
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 3000*8
Cooling Method Natural Convection
User Interface LED, APP
Communication with BMS*4 RS485, CAN
Communication with Meter RS485
Communication with Portal WiFi / Ethernet (Optional)
Weight (kg) 17
Dimension (W × H × D mm) 354 × 433 × 147
Topology Non-isolated
Self-consumption at Night (W)*5 <10
Ingress Protection Rating IP65
Mounting Method Wall Mounted
