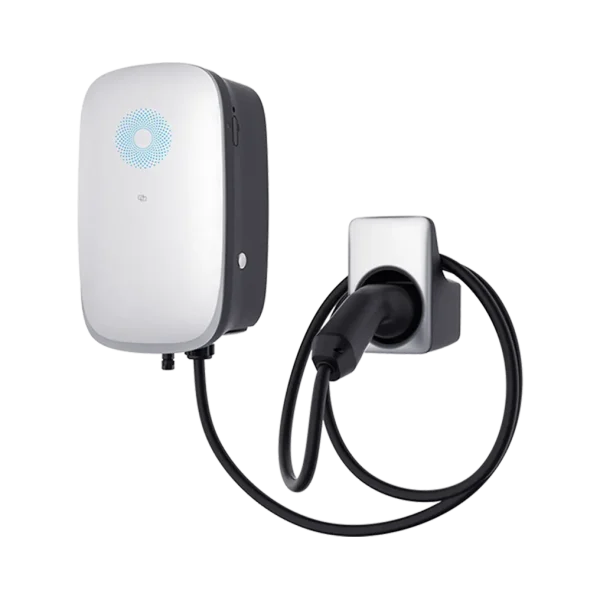

MP-7/11/22kW AC22E-01 AC EV Charger-1586

Intelligent, Flexible & Weather‑Resistant EV Charging

The China Moneypro AC22‑01 Series is a versatile AC electric vehicle (EV) charger designed for residential, commercial, and semi‑public charging scenarios. With flexible power options, intuitive load management, robust protection, and seamless integration with solar and energy storage ecosystems, it delivers a future‑ready charging experience.

Reliable Charging & Flexible Power

Multiple Power Levels

• Supports configurable charging power up to 22 kW, also available at 11 kW or 7.4 kW for adaptable installation and grid constraints.

• Works on single‑phase and three‑phase networks for residential and light commercial use.

Benefits:

• Adaptable power levels to suit home, workplace, or semi‑public charging applications.

• Cost‑efficient charging optimized for grid conditions.

Smart Load Management & Connectivity

Optimal Energy Utilization

• Integrated dynamic load management balances charging demand to prevent overload and maximize available power.

• Compatible with iEnergyCharge monitoring platform and app for remote status, scheduling, and alerts.

• Supports OCPP 1.6J for flexible integration with networked charging infrastructures.

Benefits:

• Efficient power distribution and reduced peak load penalties.

• Remote control and visibility for user convenience.

Durable All‑Weather Design

Built for Everyday Use

• IP65‑rated housing ensures protection against dust, water jets, and outdoor conditions.

• Integrated 6 mA DC fault current detection and comprehensive electrical protections (overcurrent, surge, over‑temperature, ground fault).

• Flexible mounting options—including wall or pole installation—support diverse site layouts.

Advantages:

• Reliable performance in both indoor and outdoor environments.

• Multi‑layer safety enhances user and equipment protection.

Easy Installation & User‑Friendly Operation

Footprint‑Optimized Setup

• Plug‑and‑play design with quick 5‑step installation for rapid commissioning.

• Supports RFID authentication and optional integrated MID‑certified energy metering for usage tracking and billing.

• LED status indicators provide clear charging information at a glance.

Benefits:

• Reduced setup time and installer effort.

• User‑oriented features improve daily use experience.

Why Choose China Moneypro AC22‑01?

• Flexible Charging Power: Configurable up to 22 kW charging to suit varied scenarios.

• Smart Energy Management: Dynamic load balancing and app connectivity for efficient charging.

• Weather‑Resistant: IP65 protection for outdoor and indoor durability.

• Robust Safety: Integrated fault detection with multi‑tier electrical protections.

• Easy to Install: Quick setup with flexible mounting and authentication options.

Key Specifications

• Model Name: AC22‑01 (China Moneypro branded)

• Charging Power Options: 7.4 kW / 11 kW / 22 kW (configurable)

• Grid Voltage: 230 V / 400 V AC (single/three‑phase)

• Max. Charge Current: 32 A (3‑phase) / 16 A (configurable)

• Connector Type: Type 2 (IEC 62196‑2)

• Protection Rating: IP65 (dust/water resistant)

• Fault Protection: Integrated DC 6 mA detection plus overload/overtemp ground fault protections

• Communication: RS485, Wi‑Fi, Ethernet, optional 4G, OCPP 1.6J support

• Mounting: Wall or pole (stand) installation options

• Operating Temp.: –30 °C to +50 °C (typical)

• Dimensions (approx.): 214 × 346 × 125 mm; Weight ~6.5 kg

Typical Applications

• Home EV Charging: Efficient daily charging for residential electric vehicles.

• Workplace & Commercial Sites: Scalable power output for shared or employee charging.

• Semi‑Public Charging: Adaptable AC charging at community parking or retail locations.

• Solar & ESS Integration: Combined PV + ESS + EV charging solution to maximize renewable usage.

FAQ – Common Questions

Q1: What power outputs can AC22‑01 support?
The charger supports configurable output levels up to 22 kW, with flexible options for 11 kW and 7.4 kW depending on installation and grid setup.

Q2: Is the charger suitable for outdoor installation?
Yes — IP65 protection and robust electrical protections enable reliable outdoor and indoor use.

Q3: Can I manage charging remotely?
Yes — the charger supports app connectivity via iEnergyCharge or compatible cloud platforms, and OCPP 1.6J for network integration.

Q4: Does AC22‑01 support load management?
Yes — dynamic load balancing helps prevent overload and optimize available power distribution.

Q5: What connector does it use?
It uses a Type 2 charging connector compliant with common European EV standards.
