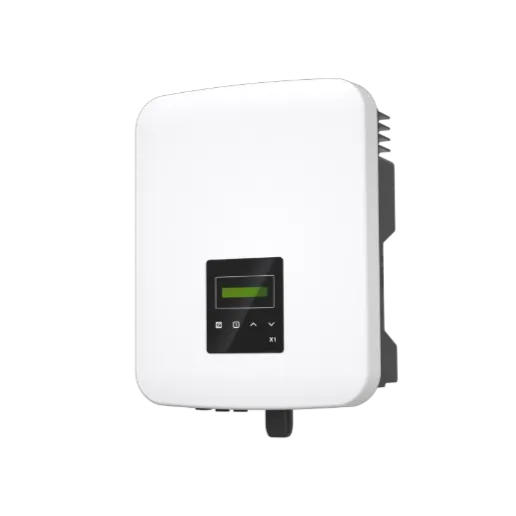

MP-X1-BOOST G3 3-6kW Single Phase Inverter-6737

MP-X1-BOOST G3 3-6kW Single Phase Inverter-6737

The China Moneypro X1-BOOST G3 Series is a single-phase solar string inverter tailored for residential photovoltaic systems. Designed to maximize solar harvest while ensuring compliance with local grid regulations, this inverter features 150 % PV oversizing, intelligent export control, and robust environmental tolerance. The X1-BOOST G3 Series supports a broad range of power ratings from 3 kW to 6 kW, making it ideal for a variety of rooftop solar installations. It combines high performance, easy installation, and dependable safety features to deliver optimized energy output and long-term reliability.

Category:

Share your love

Smart, Reliable PV Energy Conversion for Homes

The China Moneypro X1-BOOST G3 Series is a single-phase solar string inverter tailored for residential photovoltaic systems. Designed to maximize solar harvest while ensuring compliance with local grid regulations, this inverter features 150 % PV oversizing, intelligent export control, and robust environmental tolerance. The X1-BOOST G3 Series supports a broad range of power ratings from 3 kW to 6 kW, making it ideal for a variety of rooftop solar installations. It combines high performance, easy installation, and dependable safety features to deliver optimized energy output and long-term reliability.

Superior Solar Conversion

High Yield & Flexible PV Integration

  • Supports 150 % PV oversizing, allowing larger solar arrays relative to the inverter rating.

  • Built-in export control ensures compliance with grid standards and prevents over-export to the utility network.

  • 110 % AC overloading capability enhances output flexibility under high irradiation conditions.

Benefits:

  • Extracts more energy from PV panels for higher daily production.

  • Flexible design accommodates diverse rooftop configurations.

Intelligent & User-Friendly Operation

Ease of Setup & Monitoring

  • Designed for simple installation and commissioning — ideal for residential systems.

  • Optional 24-hour monitoring and maintenance offers continuous performance visibility.

Advantages:

  • Reduces time and effort required for setup.

  • Enables proactive system status tracking through optional monitoring.

Robust Safety & Reliability

Protection You Can Trust

  • Optional AC/DC built-in SPD (Type III) improves surge protection against voltage spikes.

  • Over-temperature protection guards against heat-related failures.

  • Integrated export control simplifies grid-side safety and compliance.

Advantages:

  • Enhances system durability in harsh environments.

  • Protects both the inverter and connected PV modules from electrical hazards.

Why Choose China Moneypro X1-BOOST G3 Series?

  • Flexible PV Support: 150 % oversizing and 110 % AC overloading for higher yield.

  • Export Compliance: Built-in export control for grid regulation adherence.

  • Smart Monitoring (Optional): 24-hour monitoring capability for system insights.

  • Durable & Safe: Optional AC/DC SPD and over-temperature protection for reliability.

  • Ideal for Homes: Efficient conversion tailored to residential solar systems.

Key Specifications

(Here are the core officially published electrical specs — no speculative values.)

  • Power Range: 3.0 kW – 6.0 kW (varies by model)

  • Max. PV Array Input Power: ~4500 Wp – 9000 Wp depending on model

  • Max. PV Input Voltage: 600 V

  • MPP Tracker Voltage Range: 70 – 580 V

  • MPP Trackers / Strings per Tracker: 2 / 1

  • Rated AC Output Power: Matches rated model (3.0 kW – 6.0 kW)

  • Nominal AC Voltage / Range: 220/230/240 V; 180 – 280 V

  • Ingress Protection: IP66

  • Operating Temp: -25 °C – +60 °C

  • Dimensions: ~341.5 × 430 × 143 mm

  • Net Weight: ~13.5 kg – 15 kg (by model)

Typical Applications

  • Residential Rooftops: Ideal for homes seeking high solar yield and cost-effective performance.

  • Grid-Connected PV Systems: Ensures export control and compliance with local regulations.

  • Smart Solar Installations: Supports optional 24 h monitoring for proactive performance insights.

FAQ – Common Questions

Q1: What does “150 % PV oversizing” mean?
It allows the connected PV array capacity to be up to 150 % of the inverter’s rated power, enabling larger solar installations for increased energy generation.

Q2: Does the inverter have export control?
Yes — integrated export control ensures compliance with local grid export limits.

Q3: Is monitoring included?
Monitoring is optional and can provide 24-hour performance insights when enabled.

Q4: What protection features are available?
Options include AC/DC SPD (Type III) and over-temperature protection for enhanced electrical safety.

Q5: Is this inverter suitable for residential solar systems?
Yes — with a power range from 3 kW to 6 kW and robust safety features, it fits well with home PV installations.

Specifications

X1-3.0-T-D(L)   X1-3.3-T-D(L)   X1-3.6-T-D(L)   X1-4.2-T-D(L)   X1-4.6-T-D(L)   X1-5.0-T-D(L)   X1-5.5K-T-D(L)  X1-6.0K-T-D(L)
X1-3.0-T-N(L)   X1-3.3-T-N(L)   X1-3.6-T-N(L)   X1-4.2-T-N(L)   X1-4.6-T-N(L)   X1-5.0-T-N(L)   X1-5.5K-T-N(L)  X1-6.0K-T-N(L)
DC INPUT
Max. PV array input power [Wp] 4500          4950           5400          6300           6900           7500           8250          9000
Max. PV input Voltage [V] 600            600            600           600             600            600            600            600
Startup voltage [V] 100            100             100            100             100             100             100             100
Nominal input voltage [V] 360            360            360            360             360            360            360            360
MPP tracker voltage range [V] 70 ~ 580     70 ~ 580      70 ~ 580     70 ~ 580      70 ~ 580      70 ~ 580      70 ~ 580      70 ~ 580
No. of MPP trackers / Strings per MPP tracker 2/1             2/1              2/1             2/1              2/1              2/1             2/1             2/1
Max. PV input current(Input A/Input B) [A] 14/14          14/14          14/14          14/14           14/14          14/14          14/14          14/14
Isc PV Array Short Circuit Current(Input A/Input B) [A] 18/18          18/18          18/18          18/18           18/18          18/18          18/18          18/18
AC OUTPUT
Rated AC output power [W] 3000          3300          3680          4200          4600          5000①                    5500           6000
Rated AC output current [A] 13             14.3             16             18.3             20              21.7            23.9            26.1
Max. output apparent power [VA] 3300          3630      4048(3680for G98/TOR)      4620          5060          5500②                   6050      6600(4600for VDE4105)
Max. AC output current [A] 14.3           15.8       17.6(16 for G98/TOR)       20.1             22            23.9③                     26.3       28.7(20 for VDE4105)
Nominal AC voltage/ AC voltage range [V]* 220/230/240; 180~280
Nominal AC frequency/AC frequency range [Hz]* 50/60; ±5
Power Factor Range 0.8 leading ~ 0.8 lagging
THDi (Rated power) [%]
SYSTEM DATA		 <2
Max. E代ciency [%] 97.80
Euro. E代ciency [%] 97.00
Standby consumption [W] @Night <2
Ingress Protection IP66
Operating Ambient Temperature Range [°C] -25~+60 (Derating at 45°C)
Max. operation altitude [m] ≤3000
Relative humidity [%] 0~100 (Condensing)
Typical noise emission [dB] 30
Storage temperature [°C] -30~+70
Dimensions (W × H × D) [mm] 341.5 × 430 × 143
Net weight [kg] 13.5            13.5            13.5             15              15              15               15              15
Cooling concept Natural Cooling
Communication interfaces RS485/DRM/USB, Optional: CT/Meter
Optional monitoring dongle Pocket WiFi/LAN/4G
Display 2 x LED + LCD (16 x 2) / APP
PROTECTION
Over/under voltage protection YES
DC isolation protection YES
Monitoring ground fault protection YES
Grid monitoring YES
DC injection monitoring YES
Back feed current monitoring YES
Residual current detection YES
Anti-islanding protection YES
Over temperature protection YES
SPD YES
STANDARD
Safety IEC/EN 62109-1/-2
EMC EN61000-6-1/2/3/4, EN61000-3-2/3/11/12
Certification IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR
