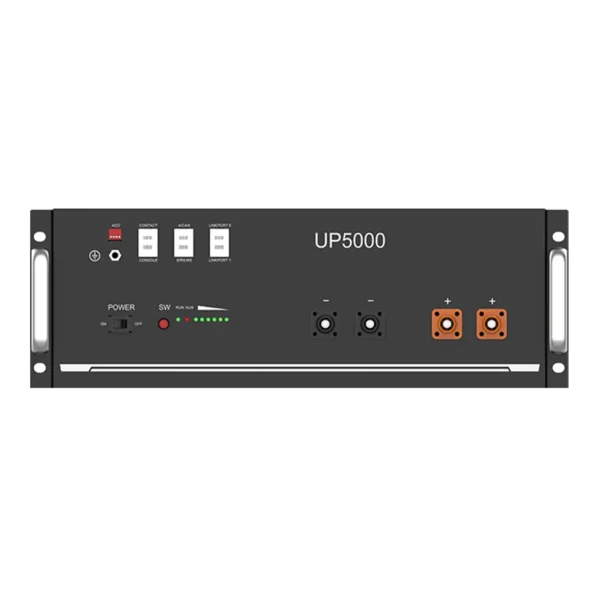

MP-UP5000-9239

High Performance & Efficient Energy Storage

More Usable Energy

• Nominal capacity: 4.8 kWh
• Usable capacity: 4.56 kWh with 95% Depth of Discharge (DOD)
• Nominal voltage: 48 V low-voltage design
• High cycle life: Over 4,500 cycles for long-term performance

Benefits:

• Higher usable energy output
• Long service life and reduced system cost
• Stable and reliable energy storage performance

Flexible Expansion & Modular Design

Scalable Energy Storage

• Modular design supports parallel connection up to 16 units
• Easy system expansion for growing energy demands
• Compact rack-mount installation design

Advantages:

• Flexible capacity expansion
• Suitable for residential and small commercial systems
• Easy installation and maintenance

Intelligent Battery Management

Advanced BMS Protection

• Integrated Battery Management System (BMS)
• Real-time monitoring and protection functions
• Multiple communication protocols supported:
  • RS485
  • CAN

Benefits:

• Enhanced system safety
• Improved battery performance
• Intelligent system control

Durable & Safe Design

Engineered for Long-Term Reliability

• Lithium iron phosphate (LiFePO?) battery chemistry
• Design life over 10 years
• Wide operating temperature range:
  • Charge: 0??C ~ 50??C
  • Discharge: -10??C ~ 50??C
• Multiple international certifications:
  • IEC62619
  • CE
  • UN38.3

Advantages:

• High safety level
• Long operational lifespan
• Reliable performance in different environments

Why Choose China Moneypro UP5000?

• High Usable Energy: 4.56 kWh usable capacity
• Modular Expansion: Up to 16 units in parallel
• Long Lifespan: Over 4,500 cycles
• Advanced BMS: Intelligent monitoring and protection
• Safe & Reliable: LiFePO? battery technology

Key Specifications

• Battery Type: LiFePO?
• Nominal Voltage: 48 V
• Nominal Capacity: 4.8 kWh
• Usable Capacity: 4.56 kWh
• Cycle Life: >4,500 cycles
• Communication: RS485 / CAN
• Parallel Support: Up to 16 units
• Operating Temperature:
  • Charge: 0??C ~ 50??C
  • Discharge: ?10??C ~ 50??C
• Protection Rating: IP20
• Design Life: 10+ Years

Typical Applications

• Residential Solar Storage
• Home Backup Power
• Off-Grid Solar Systems
• Self-Consumption Optimization
• Small Commercial Energy Storage

FAQ ?C Common Questions

Q1: What is the capacity of the UP5000 battery?
The China Moneypro UP5000 provides 4.8 kWh nominal capacity and 4.56 kWh usable energy.

Q2: Can the system be expanded?
Yes, the battery supports up to 16 units in parallel for scalable storage capacity.

Q3: What battery technology is used?
The system uses LiFePO? lithium iron phosphate technology for enhanced safety and lifespan.

Q4: How long is the battery lifespan?
The UP5000 offers over 4,500 cycles and a design life exceeding 10 years.

Q5: What communication interfaces are supported?
The battery supports RS485 and CAN communication interfaces.
