MP-UP5000-8390

MP-UP5000-8390

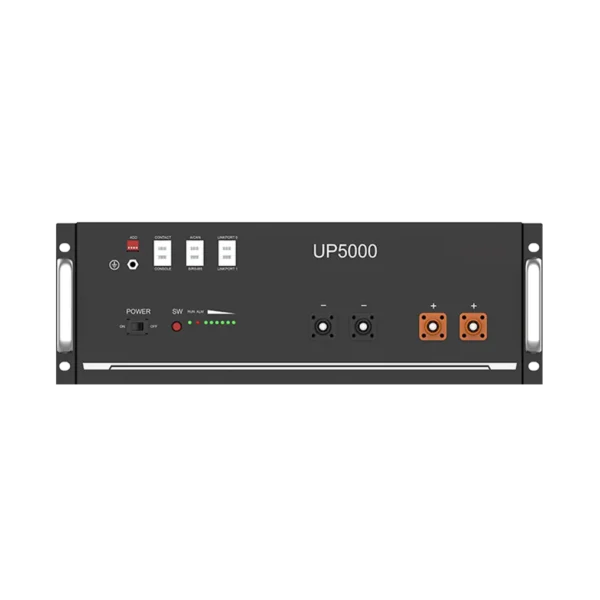

The China Moneypro UP5000 is a 48 V low-voltage lithium energy storage battery designed for residential solar energy systems. Featuring modular expansion, high safety standards, and long cycle life, it delivers reliable energy storage for self-consumption, backup power, and off-grid applications.

Its compact rack-mount design and intelligent BMS make it ideal for modern residential energy storage installations.

Category:

Share your love

Efficient Energy Storage & High PERFORMANCE

Maximize Energy Utilization

  • 4.8 kWh nominal capacity with 4.56 kWh usable energy
  • 95% depth of discharge (DOD) for higher usable capacity
  • 48 V low-voltage architecture for residential solar systems
  • Lithium-ion (LiFePO₄) technology ensures stable performance

Benefits:

  • Higher usable energy output
  • Longer battery life and reliable performance
  • Optimized solar self-consumption

Reliable Backup & Continuous Power

Power Peace of Mind

  • Nominal energy: 4.8 kWh
  • Usable energy: 4.56 kWh
  • Expandable up to 16 units in parallel
  • Built-in BMS for battery protection

Advantages:

  • Flexible expansion for growing energy needs
  • Reliable backup during grid outages
  • Stable long-term performance

Intelligent Management & Connectivity

Smart Battery Control

  • Integrated Battery Management System (BMS)
  • Communication interfaces: CAN / RS485
  • Compatible with major hybrid inverters
  • Intelligent cell balancing and protection

Benefits:

  • Improved battery safety and lifespan
  • Real-time monitoring and system control
  • Flexible system integration

Durable & Safe Design

Engineered for Long-Term Use

  • 6000 cycle life @95% DOD
  • 10+ year design life
  • IP20 protection rating
  • Lithium iron phosphate (LiFePO₄) chemistry for enhanced safety

Advantages:

  • Long service life
  • High reliability
  • Safe residential installation

Why Choose China Moneypro UP5000?

  • High Capacity: 4.8 kWh per module
  • Expandable Design: Up to 16 batteries in parallel
  • Long Lifespan: 6000 cycles
  • Safe Technology: LiFePO₄ battery chemistry
  • Smart BMS: Intelligent battery protection

Key Specifications

  • Nominal Energy: 4.8 kWh
  • Usable Energy: 4.56 kWh
  • Nominal Voltage: 48 V
  • Battery Type: Lithium-ion (LiFePO₄)
  • Cycle Life: 6000 cycles @95% DOD
  • Communication: CAN / RS485
  • Expansion: Up to 16 units
  • Protection Rating: IP20
  • Weight: ~40 kg
  • Dimension: 420 × 442 × 165 mm
  • Operating Temperature:
    • Charge: 0 °C to 50 °C
    • Discharge: −10 °C to 50 °C

Typical Applications

  • Residential Solar Systems — Store excess solar energy
  • Backup Power — Power during outages
  • Off-Grid Systems — Independent energy supply
  • Hybrid Energy Systems — Smart energy optimization

FAQ – Common Questions

Q1: What is the capacity of UP5000?
The battery provides 4.8 kWh nominal capacity and 4.56 kWh usable energy.

Q2: Can the battery be expanded?
Yes, the system supports up to 16 batteries in parallel.

Q3: What battery technology is used?
The UP5000 uses LiFePO₄ lithium battery technology.

Q4: What communication interfaces are available?
The battery supports CAN and RS485 communication.

Q5: What is the cycle life?
The battery offers up to 6000 cycles at 95% DOD.

Specifications

Nominal Voltage (VDC) 48
Nominal Capacity (kWh) 4.8
Usable Capacity (kWh) 4.56
Dimension (W*D*H mm) 442*420*165
Weight (kg) 40
Depth of Discharge 95%
Charge/Discharge (A) (Normal) 50
Charge/Discharge (A) (Max) 74~89@69S
Charge/Discharge (A) (Peak) 90~200@15S
Communication Port RS485/CAN
Single String Quantity (pcs) 16
Working Temperature/ (℃) Charge 0~50
Working Temperature/ (℃) Discharge -10~50
Storage Temperature/ (℃) -20~60
Short current/duration time (A) <4000/2ms
IP rating IP20
Humidity (RH) 5%~95% No condensation
Altitude (m) <4000
Design life (@25℃) 10+year
Cycle Life (@25℃) >6,000
Certification IEC62619/IEC63056/IEC61000-6-2/3/UN38.3
