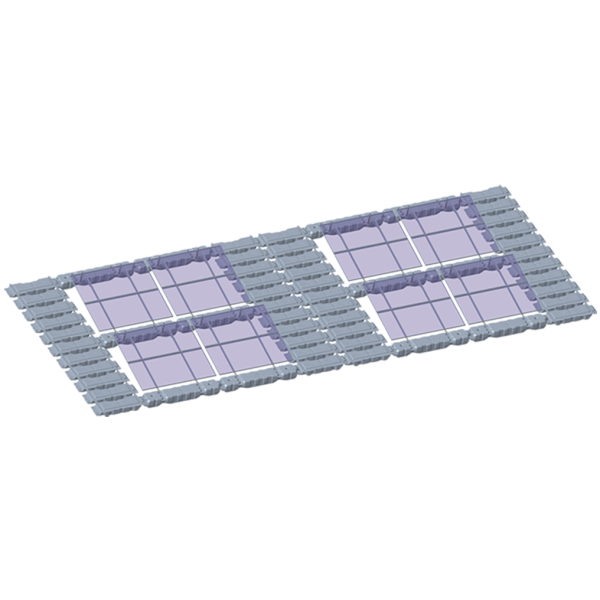

MP-TS30M Floating PV System-5442

Efficient, High‑Capacity & Easy‑Maintenance Floating Solar Solution

The China Moneypro SGF‑TS30M is an advanced floating photovoltaic (FPV) system designed for large‑scale water surface renewable energy projects on reservoirs, subsidence areas, lakes, and tidal flats. It features optimized modular construction, high installation efficiency, enhanced capacity utilization, and safe operational access for utility‑grade deployments.

High Installation Efficiency & System Capacity

Modular & Streamlined Construction

• Modular floating structure with integrated support ensures simplified installation steps and reduced complexity.

• Optimized layout with low clearance between modules maximizes water surface utilization and increases installed capacity.

• Standardized assembly and integrated design enhance installation efficiency compared with traditional floating PV solutions.

Benefits:

• Faster on‑site construction and lower labor costs.

• Higher energy yield per unit water surface area.

Robust Load Rating & Safe Maintenance Access

Built for Challenging Water Environments

• Designed to withstand wind speeds up to ≤ 260 km/h and snow loads in a broad range from 0.32 kN/㎡ to 1.9 kN/㎡.

• Maintenance walkway width ≥ 450 mm and high buoyancy (> 160 kg/㎡) ensure safe personnel access and service operations.

• Flexible North–South/East–West layout options allow optimized cabling and module orientation for site‑specific conditions.

Advantages:

• Improved system durability in wind and snow environments.

• Safe, convenient O&M access for field technicians.

Premium Materials & Environmental Compatibility

Durable Floating Platform

• High‑grade structural materials include zinc‑magnesium‑aluminum and aluminum alloy for corrosion resistance and long service life.

• Food‑grade HDPE floating bodies provide stable buoyancy and longevity in water environments.

• Designed to accommodate large module formats up to 2500 mm × 1350 mm, supporting high‑capacity PV modules.

Benefits:

• Resistance to harsh water and ultraviolet conditions.

• Compatible with diverse high‑efficiency PV module technologies.

Why Choose China Moneypro SGF‑TS30M?

• High Installation Efficiency: Streamlined modular structure and simplified construction process.

• Enhanced Capacity Utilization: Optimized module arrangement increases water surface energy density.

• Robust Weather Tolerance: High wind and snow load capacity for diverse climatic conditions.

• Safe Maintenance Access: Wide walkways and high buoyancy support reliable O&M.

• Environmental Friendly Materials: Corrosion‑resistant and food‑grade materials ensure durability.

Key Specifications

• Application Scenarios: Reservoirs, subsidence zones, lakes, tidal flats.

• Recommended Tilt Angle: 5° – 15° (adjustable).

• Wind Speed Tolerance: ≤ 260 km/h.

• Snow Load Resistance: 0.32 kN/㎡ – 1.9 kN/㎡.

• Maintenance Walkway Width: ≥ 450 mm.

• Compatible PV Module Size: Up to 2500 mm (length) × 1350 mm (width).

• Installation Efficiency: ~8 modules per man‑hour.

• Water Surface Coverage Rate: ~21.5 %.

• Warranty: Standard 5 years (extendable).

• Floating Platform Materials: Zinc‑magnesium‑aluminum & aluminum alloy.

• Floating Body Material: Food‑grade HDPE.

• Buoyancy Capacity: > 160 kg/㎡.

• Design Standards: ASCE 7‑2016‑27 / BS EN 1991‑4‑2005 / MS1553‑2006.

Typical Applications

• Reservoir Floating Solar Plants: Maximizes water surface utilization for clean power.

• Subsidence Area PV Projects: Build systems where land is limited.

• Lakes & Tidal Flats: Support floating PV on diverse water bodies.

• Utility‑Scale Renewable Energy Deployments: Scalable FPV projects for grid‑connected generation.

FAQ – Common Questions

Q1: What is the China Moneypro SGF‑TS30M?
It’s a floating photovoltaic system optimized for utility‑scale water surface solar projects, providing high installation efficiency and robust structural performance.

Q2: How does it improve installation efficiency?
Its modular design and integrated structural components reduce construction steps and save installation time.

Q3: Can it handle high wind and snow loads?
Yes — it’s designed for wind speeds up to 260 km/h and snow loads up to 1.9 kN/㎡, ensuring stability in harsh environments.

Q4: Is maintenance safe on this platform?
Yes — with a wide maintenance walkway ≥ 450 mm and high buoyancy, on‑water servicing is safer and more accessible.

Q5: What module sizes does it support?
It’s compatible with modules up to 2500 mm × 1350 mm, accommodating most large‑format PV panels.
