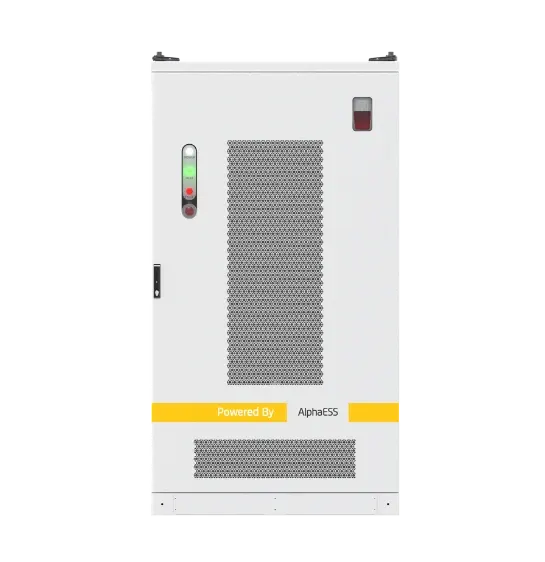

MP-STORION-H30/H50-G3 |125kW/261kWh All-in-one Energy Storage System-7640

MP-STORION-H30/H50-G3 |125kW/261kWh All-in-one Energy Storage System-7640

The China Moneypro PowerStack H30/H50‑G3 Series is a next‑generation commercial and industrial hybrid energy storage system, integrating a high‑performance hybrid inverter, energy storage, power conversion system (PCS), EMS/BMS, and smart control within a compact all‑in‑one cabinet. Designed for peak shaving, load shifting, backup power, and TOU optimization, it provides a flexible, resilient, and cloud‑connected storage solution suited for diverse commercial, agricultural, and light industrial applications.

Category:

Share your love

All‑in‑One, Intelligent & Scalable C&I Energy Storage

The China Moneypro PowerStack H30/H50‑G3 Series is a next‑generation commercial and industrial hybrid energy storage system, integrating a high‑performance hybrid inverter, energy storage, power conversion system (PCS), EMS/BMS, and smart control within a compact all‑in‑one cabinet. Designed for peak shaving, load shifting, backup power, and TOU optimization, it provides a flexible, resilient, and cloud‑connected storage solution suited for diverse commercial, agricultural, and light industrial applications.

High Efficiency & Flexible PV Integration

Maximized Solar & Grid Interaction

  • Integrated 4 MPPT trackers (8 PV inputs) — enables flexible solar string layouts for optimized energy capture even in multi‑orientation rooftops.

  • Supports DC/AC/hybrid coupling for versatile PV + storage + grid configurations.

  • 150 % PV oversizing capability increases solar harvest potential per inverter rating.

  • Fast on/off‑grid switching (≤ 20 ms) supports seamless backup during grid outages.

  • Cloud and local monitoring with web & app‑based interfaces delivers smart O&M and performance insight.

Benefits:

  • Higher daily solar energy utilization and revenue‑driven energy dispatch.

  • Flexible PV array design and strong self‑consumption optimization.

Scalable & High‑Performance Configuration

Designed for Diverse C&I Needs

  • Rated output power: 30 kW (H30‑G3) or 50 kW (H50‑G3) — accommodates varying load sizes.

  • Standard storage capacity:

    • H30‑G3: ~72.3 kWh / ~144.6 kWh (expanded with extra racks)

    • H50‑G3: ~120.5 kWh / ~241 kWh (expanded with extra racks)

  • Supports parallel operation:

    • Up to 10 systems on‑grid for high power and capacity scaling.

    • Up to 4 systems off‑grid for standalone and resilient applications.

Advantages:

  • Tailored power and capacity choices for small to mid‑size business energy needs.

  • Scalable architecture enabling expanded commercial systems up to multi‑hundreds of kWh.

Intelligent Backup, Load Shifting & TOU

Smart Power Control

  • Backup power support with ultra‑fast switching to maintain continuity of critical loads.

  • Peak shaving & load shifting modes help reduce demand charges and optimize energy costs.

  • TOU (Time‑of‑Use) mode allows schedule‑based storage charge/discharge for tariff optimization.

Benefits:

  • Reduced operational costs and enhanced energy autonomy.

  • Intelligent energy dispatch aligned with tariff structures.

Robust & Durable Commercial‑Grade Design

Built for Long‑Term Use

  • All‑in‑one integrated cabinet includes PCS, BMS, DC/DC, STS (Static Transfer Switch), and EMS — minimizing installation footprint and complexity.

  • IP55 protection class and C4 corrosion resistance support outdoor or sheltered installation environments.

  • LiFePO₄ (LFP) battery modules offer long cycle life (~8,000 cycles to 70 % EOL), high safety and thermal stability.

  • Operates reliably across a wide environmental range (-30 °C ~ 50 °C) with appropriate derating.

Advantages:

  • Compact yet rugged architecture for commercial sustainability.

  • Enhanced resilience in varied C&I deployments.

Why Choose China Moneypro PowerStack H30/H50‑G3?

  • Efficient & Smart: 4 MPPT solar tracking and hybrid coupling for enhanced energy capture.

  • Fast Backup: ≤ 20 ms grid switching ensures continuity for critical loads.

  • Scalable System: Parallel support up to 10 units (on‑grid) and reliable off‑grid operation.

  • Commercial Durability: IP55/C4 protections with LFP battery for long‑term field use.

  • Remote Management: Cloud‑enabled monitoring and analytics via web/app interfaces.

Key Specifications

  • Rated Output Power: 30 kW (H30‑G3) / 50 kW (H50‑G3)

  • Standard Energy Capacity:

    • H30‑G3: ~72.3 kWh / ~144.6 kWh (expanded)

    • H50‑G3: ~120.5 kWh / ~241 kWh (expanded)

  • Max PV Input Power: 60 kW (H30) / 75 kW (H50)

  • MPPT Trackers: 4 with 2 strings per MPPT

  • PV Voltage Range: ~200 – 850 V (H30) / ~330 – 850 V (H50)

  • Max Efficiency: ~97.8 % (PCS); Round‑Trip Efficiency: ~92 %

  • Protection Rating: IP55; Corrosion Class: C4

  • Noise Emission: ≤ 65 dB @ 1 m

  • Operating Temp: -30 °C ~ 50 °C (derating above 45 °C)

  • Dimensions: ~1,120 × 1,300 × 2,050 mm; Weight: ~1,600 – 1,700 kg

  • Battery Chemistry: LiFePO₄ (LFP) with 24.1 kWh modules

  • Warranty: 5 yr product / 10 yr battery performance

Typical Applications

  • Commercial Rooftop PV + Storage: Peak shaving and load optimization for businesses.

  • Industrial Facility Energy Management: Support peak demand, backup power, and self‑consumption.

  • Micro‑Grid & Off‑Grid Capability: Grid‑interactive or stand‑alone power supply with seamless switching.

  • Flexible Modular Installations: Expand system capacity and power with extra battery cabinets.

FAQ – Common Questions

Q1: What power ratings are available?
China Moneypro PowerStack H30/H50‑G3 offers 30 kW and 50 kW hybrid configurations to suit different commercial load profiles.

Q2: How scalable is the storage capacity?
Standard capacities range from ~72.3 kWh to ~241 kWh, and can be expanded with additional battery racks for larger energy requirements.

Q3: What backup performance does it offer?
With ≤ 20 ms grid/off‑grid switching, the system provides fast and reliable backup to maintain critical loads.

Q4: Can multiple systems be connected?
Yes — up to 10 units in parallel (on‑grid) and 4 units (off‑grid) support larger capacity and power scaling.

Q5: Is it suitable for outdoor installation?
Yes — the IP55 protection and C4 corrosion resistance make it suitable for installations in varied outdoor and sheltered environments.

Specifications

Item MP-STORION‑H30‑G3 MP-STORION‑H50‑G3
System Capacity 72.3 kWh 120.5 kWh
Standard Battery Rack 3 modules 5 modules
Warranty 5 Years Product Warranty, 10 Years Battery Warranty 5 Years Product Warranty, 10 Years Battery Warranty
PV Side (DC)
Max. Input Power 60 kW 75 kW
Start‑up Voltage (V) 210 V 330 V
MPPT Voltage Range (V) 200 ~ 850 V 330 ~ 850 V
Number of MPPT 4 4
Strings per MPPT 2 2
Max. Input Current per MPPT (A) 40 A / 40 A / 40 A / 40 A 50 A / 50 A / 50 A / 50 A
Max. Short‑Circuit Current (A) 50 A / 50 A / 50 A / 50 A 50 A / 50 A / 50 A / 50 A
AC Side (On‑Grid)
Nominal Output Power (kW) 30 kW 50 kW
Max. Input Apparent Power (kVA) 60 kVA 80 kVA
Nominal Grid Voltage 3L/N/PE, 220/380 V; 230/400 V; 240/415 V 3L/N/PE, 220/380 V; 230/400 V; 240/415 V
Nominal Grid Frequency 50 / 60 Hz (±5 Hz) 50 / 60 Hz (±5 Hz)
Max. Output Current (A) 45.5 A 75.8 A
Max. THD of Current <3% <3%
AC Power Factor 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
AC Side (Off‑Grid)
Nominal Output Power (kW) 30 kW 50 kW
Max. Apparent Power (kVA) 30 kVA 50 kVA
Nominal Output Voltage 3L/N/PE, 220/380 V; 230/400 V; 240/415 V 3L/N/PE, 220/380 V; 230/400 V; 240/415 V
Nominal Frequency 50 / 60 Hz (±5 Hz) 50 / 60 Hz (±5 Hz)
Max. Output Current (A) 45.5 A 75.8 A
Max. THD of Voltage <3% <3%
Overload 150% for 10 s 150% for 10 s
Efficiency
Max. Efficiency 97.8% 97.8%
European Efficiency 97.2% 97.2%
Round‑Trip Efficiency (RTE DC ↔ AC) 92% 92%
Battery Module
Module Model M77314‑S 0.5C M77314‑S 0.5C
Battery Type LiFePO4 LiFePO4
Pack Configuration 3.2 V / 314 Ah @ 1P24S 3.2 V / 314 Ah @ 1P24S
Nominal Capacity per Module (kWh) 24.1 24.1
Internal Resistance ≤ 10 mΩ ≤ 10 mΩ
Nominal Voltage (V) 76.8 76.8
Operating Voltage Range (V) 69.6 ~ 84 V 69.6 ~ 84 V
Max. Charge/Discharge Current (A) 157 A 157 A
Cycle Life 8,000 @ 70% EOL 8,000 @ 70% EOL
Battery Operating Temp Range -20 °C ~ 50 °C -20 °C ~ 50 °C
Ingress Protection (Battery) IP20 IP20
Communication CAN CAN
Module Dimensions (W x D x H mm) 525 x 856 x 260 525 x 856 x 260
Module Weight (kg) 168 168
Battery Certifications IEC 61000‑1/‑2/‑3/‑4, IEC 62619, IEC 62109, UL9540A Same
General Parameters
System Dimensions (W x D x H mm) 1,120 x 1,300 x 2,050 1,120 x 1,300 x 2,050
Weight (with battery) (kg) 1,600 1,700
Corrosion Protection Class C4 C4
Ingress Protection IP55 IP55
Noise Emission ≤ 65 dB @ 1 m ≤ 65 dB @ 1 m
Operating Temperature Range -30 °C ~ 50 °C (derating >45 °C) -30 °C ~ 50 °C (derating >45 °C)
Operating Humidity Range 0% ~ 90% (non‑condensing) 0% ~ 90% (non‑condensing)
Max. Operating Altitude 3,000 m (derating above 3,000 m) 3,000 m (derating above 3,000 m)
Fire Detection System Aerosol + smoke + temperature detection Aerosol + smoke + temperature detection
Cooling Method HVAC HVAC
Communication Interfaces RS485, CAN, Ethernet, Modbus TCP RS485, CAN, Ethernet, Modbus TCP
Dispatching Protocol Modbus TCP, API Modbus TCP, API
Optional: Meter
Meter Model DTSU666 DTSU666
Meter Rated Voltage 230 V AC / 400 V AC 230 V AC / 400 V AC
Meter Accuracy Class ±1% ±1%
Meter Comm. RS485, Modbus RTU RS485, Modbus RTU
Meter Dimensions (mm) 42 x 66 x 81.5 42 x 66 x 81.5
Optional: Expansion Battery Cabinet
Expansion Rack Capacity (kWh) 72.3 / 120.5 72.3 / 120.5
Max. Battery Rack Current (A) 157 157
Battery Rack Voltage Range (V) 208.8 ~ 252 / 348 ~ 420 208.8 ~ 252 / 348 ~ 420
Number of Modules in Rack 3 / 5 in series 3 / 5 in series
Fire‑fighting System Aerosol, smoke & temperature detection Aerosol, smoke & temperature detection
Rack Dimensions (mm) 1,120 x 1,300 x 2,050 1,120 x 1,300 x 2,050
Rack Weight (kg) 1,600 (with 5*M77314‑S) 1,600 (with 5*M77314‑S)
Optional: Parallel Backup Box
Max. Connected Systems 4 4
Nominal Power (kW) 200 200
Nominal Frequency (Hz) 50/60 50/60
Switching Time ≤ 20 ms ≤ 20 ms
Parallel Backup Box Ingress IP54 IP54
Parallel Backup Box Dimensions (W x D x H mm) 600 x 255 x 800 600 x 255 x 800
Parallel Backup Box Weight (kg) 40 40
