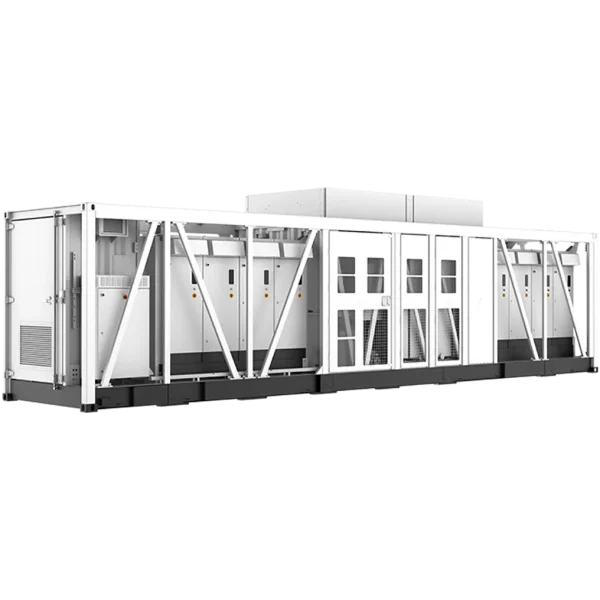

MP-SG8800UD-MV-8816

Engineered for Ultra-Large Utility Solar Projects

The China Moneypro SG8800UD-MV is a next-generation 8.8MW medium-voltage containerized PV inverter solution, purpose-built for ultra-large solar farms and centralized power plants that require maximum energy yield, simplified deployment, and lower system costs.

Built on a 1500Vdc architecture, the system integrates the inverter, MV transformer, switchgear, and LV auxiliary supply into a single 20-foot container. This turnkey design minimizes civil works, shortens installation timelines, and delivers stable full-load performance even in harsh, high-temperature environments up to 45??C.

Superior Energy Performance

Maximized Conversion Efficiency for Higher Output

• Advanced three-level inverter topology

• Up to 99% maximum efficiency

• Optimized cooling enables full power operation at 45??C

Benefits:

• Higher daily and annual energy production

• Reduced thermal derating losses

• Improved long-term project returns

Smart Operation & Maintenance

Intelligent Monitoring with Simplified Servicing

• Integrated zone monitoring for real-time diagnostics and fault analysis

• Modular system structure for quick maintenance and replacement

Advantages:

• Faster troubleshooting

• Reduced downtime

• Lower O&M costs throughout the lifecycle

Lower CAPEX with Integrated Design

Compact Containerized Turnkey Solution

• 20-foot container configuration cuts logistics and installation expenses

• 1500V DC system reduces BOS, cabling, and combiner costs

• Integrated MV transformer, switchgear, and LV auxiliary power

• Optional Q-at-night function for enhanced grid support and energy utilization

Results:

• Faster commissioning

• Fewer onsite connections

• Lower total project investment

Strong Grid Adaptability

Designed for Stable and Compliant Operation

• Compliance with IEC 61727, IEC 62116, IEC 62271-202, IEC 62271-200, IEC 60076

• Supports Low/High Voltage Ride Through (L/HVRT)

• Active & reactive power control with ramp-rate management

Benefits:

• Smooth grid integration

• Improved voltage stability

• Meets international utility requirements

Why Choose China Moneypro SG8800UD-MV?

• Ultra-High Capacity: 8.8MW reduces inverter quantity per block

• All-in-One MV Integration: Pre-installed transformer & switchgear

• Rapid Deployment: Factory-assembled container solution

• High Efficiency: 99% peak conversion efficiency

• Lower LCOE: Reduced CAPEX, OPEX, and maintenance time

Key Specifications

• Max PV Input Voltage: 1500 V

• Rated Output Power: 8800 kVA

• Rated AC Voltage Range: 20?C35 kV

• Inverter Max. Efficiency: 99%

Typical Applications

• Utility-scale solar farms

• Large centralized PV plants

• MW-level block power stations

• Containerized MV substations

• Fast-track solar EPC projects

FAQ ?C Common Questions

Q1: What scale of projects is SG8800UD-MV suitable for?
It is ideal for ultra-large utility plants, where higher capacity reduces equipment quantity and simplifies system design.

Q2: How does the container design help EPCs?
Pre-installed components significantly reduce onsite construction and wiring time.

Q3: Can it operate continuously in hot climates?
Yes, it supports full-load output at 45??C with efficient cooling.

Q4: Does it meet international grid standards?
Yes, it complies with multiple IEC MV and grid standards.

Q5: Is maintenance complicated?
No, the modular layout and smart monitoring enable quick and easy servicing.
