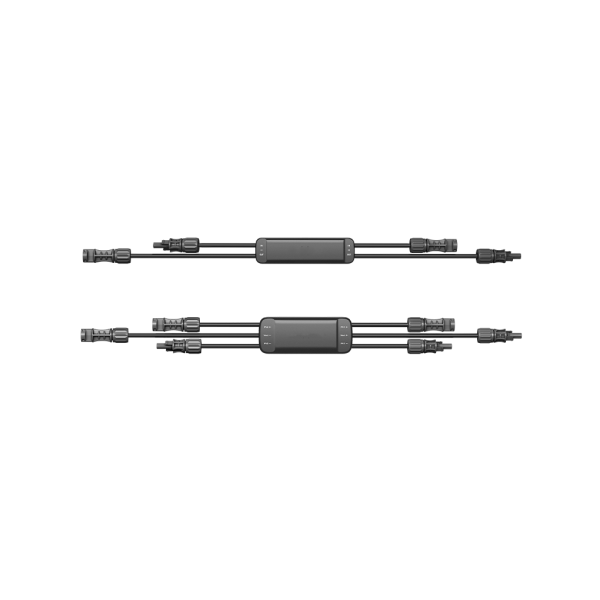

MP-RSD Receiver-6942

Module?Level Safety for Solar PV Installations

The China?Moneypro RSD Receiver is a critical rapid shutdown safety accessory designed to work as part of a rapid shutdown (RSD?2.0) solution for photovoltaic systems. Installed at the module level, it enhances fire safety and compliance by enabling controlled shutdown of PV modules during grid or equipment faults and emergencies.

Safe & Reliable Rapid Shutdown

Enhanced Fire Protection

• Operates as a module?level rapid shutdown device that disconnects one or two PV modules during emergency events.

• Receives a PLC keep?alive signal from a transmitter integrated in the inverter or from an external source.

• If the signal is lost (e.g., in emergency or power loss), the module is rapidly shut down, reducing electrical hazard risks.

• Also supports an external RSD initiator (manual trigger) for immediate shutdown.

Benefits:

• Rapid response to fault conditions enhances rooftop fire safety.

• Compliant with safety standards to help meet electrical codes and regulations.

Robust & Installer?Friendly Design

Rugged Protection & Plug?and?Play

• Plug?and?Play installation simplifies setup and reduces wiring time.

• Supports PLC communication for reliable signaling between receiver and transmitter.

• IP68 / UL?Type?6P protection ensures durability in outdoor and harsh environments.

• Wide operating temperature range (?40???C to +85???C) for dependable field performance.

Advantages:

• Designed for long?term reliability even in extreme conditions.

• Compact form factor suitable for module?level mounting.

Typical Applications

• Residential Solar Safety: Rapid shutdown at the module level to meet electrical safety codes.

• Commercial PV Systems: Enhanced hazard mitigation for larger rooftop and building installations.

• Code Compliance: Helps systems meet NEC / UL rapid shutdown requirements.

FAQ ?C Common Questions

Q1: What is the purpose of the China?Moneypro RSD Receiver?
It??s a module?level rapid shutdown device that safely disconnects PV modules during emergencies or signal loss to improve fire safety.

Q2: How does the RSD Receiver communicate?
Communication is done via PLC (Power Line Communication) between the receiver and a compatible transmitter, often integrated in the inverter or an external RSD transmitter.

Q3: Is it suitable for outdoor installation?
Yes ?? with an IP68 / UL?Type?6P protection rating and wide temperature range, it??s built for harsh outdoor conditions.

Q4: Can it support multiple modules?
Yes ?? depending on the model variant, it can be connected to one or two PV modules.
