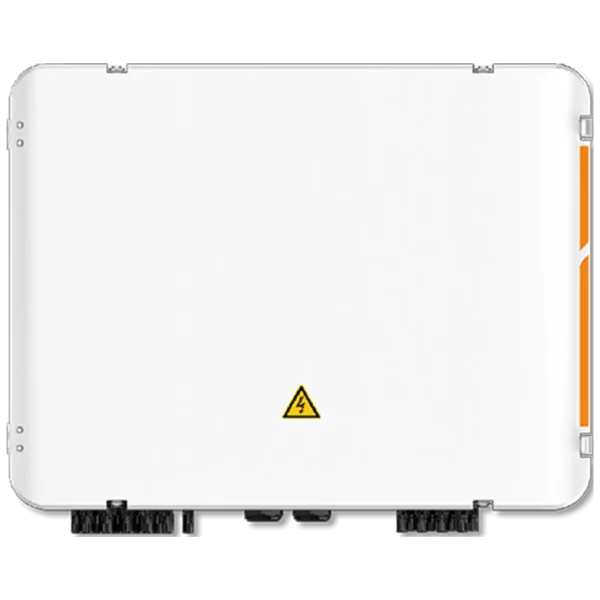

MP-PVS-16/18/20/24MH PV Combiner Box-1802

Robust and Reliable PV Protection

The China Moneypro PVS-16/18/20/24MH is engineered for safe and durable PV combiner operations in 1500Vdc systems. Featuring IP67 protection and C5 anti-corrosion rating, it ensures stable outdoor performance while preventing polarity errors with specialized PV cable connectors. Optional MPLC communication enables reliable monitoring and fault reporting.

Enhanced Safety Features

Secure DC-Side Protection

• DC-side security protection for all PV branches

• PV cable connectors designed to prevent reverse polarity

• Optional communication interface for intelligent monitoring

Benefits:

• Reduces risk of electrical faults

• Safe operation in harsh environments

• Reliable performance for long-term PV deployment

Simplified Maintenance

Intelligent O&M Tools

• Intelligent fault diagnosis for rapid identification of component issues

• One-click trip function for fast disconnection of faulty branches

Advantages:

• Minimizes downtime

• Reduces labor and O&M costs

• Quick response to abnormal conditions

Flexible and Scalable Design

Adaptable Branch Inputs

• Supports 16, 18, 20, or 24 parallel inputs

• Each branch can handle up to 21A, compatible with bifacial PV modules

Benefits:

• Easily adapts to different PV layouts

• Maximizes energy collection efficiency

• Suitable for utility-scale and commercial PV farms

Why Choose China Moneypro PVS-16/18/20/24MH?

• High Flexibility: Multiple input options for diverse PV configurations

• High-Current Compatible: Supports up to 21A per branch

• Smart Monitoring: Optional MPLC communication and fault detection

• Durable Outdoor Design: IP67 and C5 protection ensures long-term reliability

• Easy Maintenance: One-click trip and intelligent diagnostics

Key Specifications

• Max PV String Voltage: 1500 V

• Max PV String Parallel Inputs: 16 / 18 / 20 / 24

• Max String Input Current: 21 A

• Protection Class: IP67

Typical Applications

• Utility-scale PV farms

• Centralized or distributed PV array combiner systems

• Outdoor installations in harsh environments

• PV projects using bifacial or high-current modules

FAQ – Common Questions

Q1: How many PV strings can this combiner box manage?
It supports 16, 18, 20, or 24 parallel strings with high-current compatibility.

Q2: Can it handle high current PV modules?
Yes, each branch supports up to 21A, suitable for double-sided PV modules.

Q3: How does it simplify maintenance?
Through intelligent fault diagnosis and one-click trip, enabling fast and safe disconnection.

Q4: Is it suitable for harsh outdoor environments?
Absolutely. IP67 and C5 anti-corrosion ensure stable long-term performance.

Q5: Can it communicate with monitoring systems?
Yes, optional MPLC communication allows stable remote monitoring and reporting.
