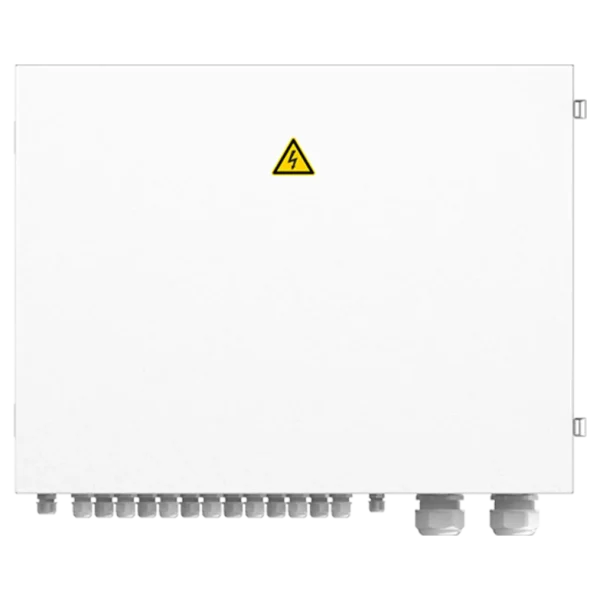

MP-PVS-16/18/20/24MH-CN PV Smart Combiner Box-5790

Flexible and Scalable PV String Management

The China Moneypro PVS-16/18/20/24MH-CN is a high-voltage PV combiner box designed for 1500Vdc solar systems. It supports multiple branch inputs (16/18/20/24) and accommodates high input currents up to 21A, making it compatible with double-sided PV modules. Its modular and flexible design allows for easy adaptation to different string configurations while maintaining safety and reliability in outdoor installations.

High Flexibility

Modular Branch Inputs

• Optional 16, 18, 20, or 24 inputs

• Supports up to 21A string current

• Compatible with double-sided PV modules

Benefits:

• Scalable for different PV layouts

• Maximizes energy collection per combiner

• Reduces design limitations for large solar farms

Intelligent Maintenance

Fast Fault Detection & Operation

• One-click trip for fast disconnection

• Intelligent fault diagnosis reduces O&M workload

• Minimizes downtime and operational risks

Advantages:

• Quick response to abnormal conditions

• Reduced labor and maintenance costs

• Enhanced system reliability

Safety and Reliability

Robust Outdoor Design

• DC-side security protection

• IP65 protection and C5 anti-corrosion rating

• PV cable special connectors prevent reverse polarity

• Optional MPLC communication for reliable monitoring

Benefits:

• Safe operation in harsh environments

• Prevents wiring errors and electrical faults

• Long service life for outdoor PV systems

Why Choose China Moneypro PVS-16/18/20/24MH-CN?

• Flexible input options to match diverse PV layouts

• High-current compatibility for modern high-power modules

• Smart monitoring and one-click fault management

• Outdoor-ready with IP65 and C5 protection

• Optional communication interface for remote system supervision

Key Specifications

• Max PV String Voltage: 1500 V

• Max PV String Parallel Inputs: 16 / 18 / 20 / 24

• Max String Input Current: 21 A

• Protection Class: IP65

Typical Applications

• Utility-scale PV farms

• Centralized and distributed PV array combiner systems

• Outdoor solar installations in harsh environments

• Projects using bifacial or high-current PV modules

FAQ – Common Questions

Q1: How many PV strings can this combiner box handle?
It supports 16, 18, 20, or 24 parallel strings, offering flexible system design.

Q2: Can it handle high current modules?
Yes, each branch can accept up to 21A, compatible with high-current double-sided modules.

Q3: How is maintenance simplified?
Intelligent fault diagnosis and one-click trip allow fast intervention and reduced O&M costs.

Q4: Is it suitable for outdoor installation?
Absolutely. IP65 and C5 anti-corrosion ratings ensure reliable performance outdoors.

Q5: Can it communicate with a monitoring system?
Yes, optional MPLC communication enables stable remote monitoring and fault reporting.
