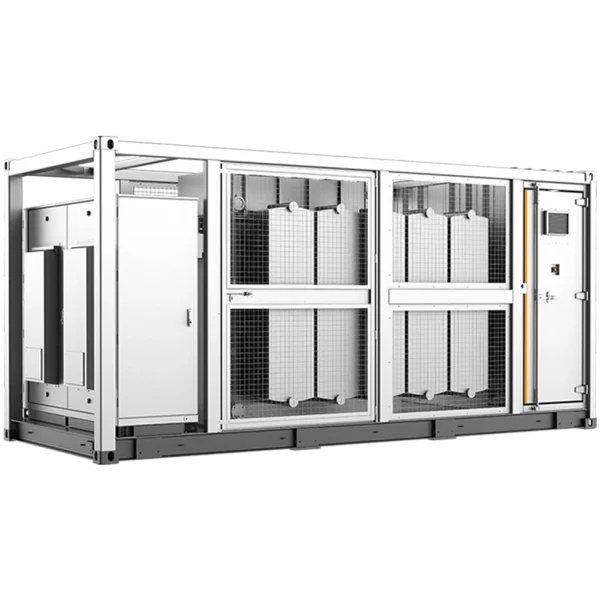

MV Turnkey Solution

Utility-scale solar projects often face high upfront costs, complex MV/LV integration, and prolonged on-site installation.

The China Moneypro MV Turnkey Solution, featuring SG320HX/SG320HX-20 string inverters and MVS9000-LV, offers a pre-assembled, containerized system designed to reduce investment, accelerate commissioning, and simplify operations for 1500Vdc utility-scale PV installations.

Category:

Share your love

High-Capacity Deployment for Large-Scale PV Plants

Utility-scale solar projects often face high upfront costs, complex MV/LV integration, and prolonged on-site installation.

The China Moneypro MV Turnkey Solution, featuring SG320HX/SG320HX-20 string inverters and MVS9000-LV, offers a pre-assembled, containerized system designed to reduce investment, accelerate commissioning, and simplify operations for 1500Vdc utility-scale PV installations.

Investment Optimization with Large Block Design

Pre-assembled, transport-ready solution

  • Supports up to 10.56 MW per block, minimizing the number of units needed for large-scale projects.

  • Standard container design ensures efficient transportation and logistics.

  • Fully pre-assembled, enabling rapid on-site setup and commissioning.

Benefits:

  • Reduced capital expenditure

  • Shorter deployment timelines

  • Simplified installation and handling

Safety-First Architecture

MV/LV isolation and front-accessible components

  • MV and LV isolation enhances operational safety.

  • Independent control room minimizes personnel exposure to electrical hazards.

  • All key components are front-accessible, eliminating the need for walk-in maintenance.

Advantages:

  • Safer working environment

  • Easier inspection and maintenance

  • Reduced operational risk

Simplified Operation & Maintenance

Modular devices with online diagnostics

  • Online analysis enables rapid fault detection and troubleshooting.

  • Modular main devices allow easy replacement, minimizing downtime.

Operational benefits:

  • Reduced O&M costs

  • Faster issue resolution

  • Improved system uptime and reliability

Proven Reliability

Type-tested components and standards compliance

  • All components are type-tested for reliable performance.

  • Fully compliant with IEC 60076, IEC 62271, and IEC 61439 standards.

Reliability benefits:

  • Long-term operational stability

  • High confidence for utility-scale PV projects

  • Compliance with global electrical standards

Technical Highlights

  • Rated Power: 9000 kVA

  • MV Voltage: 20–35 kV

  • Efficiency: ≥ 99%

  • Cooling Method: ONAN

Applications

Utility-Scale PV Plants

Ideal for 1500Vdc solar farms that require high-capacity, containerized MV/LV turnkey solutions.

Large Block Deployment

Containerized design simplifies logistics, transportation, and on-site assembly.

Safe and Reliable Operations

Front-accessible components, independent control room, and online diagnostics ensure safe, efficient O&M.

FAQ – Key Questions

Q1: What system size is supported by this solution?
Supports up to 10.56 MW per block, suitable for very large utility-scale PV projects.

Q2: How does it reduce installation costs?
Pre-assembled containerized blocks allow faster setup, reduced labor, and simplified transport logistics.

Q3: What safety features are included?
MV/LV isolation, independent control room, and front-accessible components ensure safe operation.

Q4: How is maintenance simplified?
Online diagnostics and modular design enable rapid troubleshooting and easy replacement of main devices.

Q5: Is it compliant with international standards?
Yes. Fully compliant with IEC 60076, IEC 62271, and IEC 61439, with type-tested components.

Why Choose China Moneypro

China Moneypro delivers reliable, high-efficiency MV turnkey solutions. The SG320HX/SG320HX-20 with MVS9000-LV is ideal for 10.56 MW utility-scale 1500Vdc PV projects, offering reduced investment, rapid commissioning, enhanced safety, and simplified O&M for maximum operational efficiency.

Specifications

Type designationMVS9000-LV
Transformer
Transformer type Oil immersed
Rated power 9000 kVA @ 51 ℃，9054 kVA @ 50 ℃
Max. power 10560 kVA @ 30 ℃
Vector group Dy11y11
LV / MV voltage 0.8-0.8 kV /（20 – 35 ）kV
Maximum input current at nominal voltage 3811 A * 2
Frequency 50 Hz / 60 Hz
Tapping on HV 0 , ± 2 * 2.5 %
Effciency ≥99% ( optional: Tier2 )
Cooling method ONAN ( Oil Natural Air Natural )
Impedance 9.5% ( ±10% )
Oil type Mineral oil ( PCB free )
Winding material Al / AI
Insulation class A
MV switchgear
Insulation type SF6
Rated voltage range 24 kV – 40.5 kV
Rated current 630 A
Internal arcing fault IAC AFL 20 kA / 1 s
LV panel
Main switch specifcation 4000 A / 800 Vac / 3P, 2 pcs
Disconnector specifcation 260A / 800 Vac / 3P, 30 pcs
Fuse specifcation 400A / 800 Vac / 1P, 90 pcs
Protection
AC input protection Fuse+Disconnector
Transformer protection Oil-temperature, Oil-level, Oil-pressure, Buchholz
Relay protection 50 / 51 , 50 N / 51 N
Surge protection AC Type I + II
General data
Dimensions ( W * H * D ) 6058 mm * 2896 mm * 2438 mm
Approximate weight 24 T
Operating ambient temperature range * -20 ℃ to 60 ℃ ( optional: -30 ℃ to 60 ℃ )
Auxiliary power supply 15 kVA / 400 V ( optional: max. 40 kVA )
Degree of protection IP54
Allowable relative humidity range (non-condensing) 0 % – 95 %
Operating altitude 1000 m ( standard ) / > 1000 m ( optional )
Communication Standard: RS485, Ethernet, Optical fber
Compliance IEC 60076, IEC 62271-200, IEC 62271-202, IEC 61439-1, EN 50588-1
* The ambient temperature is determined as the average temperature obtained from at least four evenly distributed

temperature monitoring points located at a distance of 1 meter from the equipment, at a height halfway up the machine. The temperature sensors must be shielded from airfow, thermal radiation, and rapid temperature fuctuations to prevent display inaccuracies.
