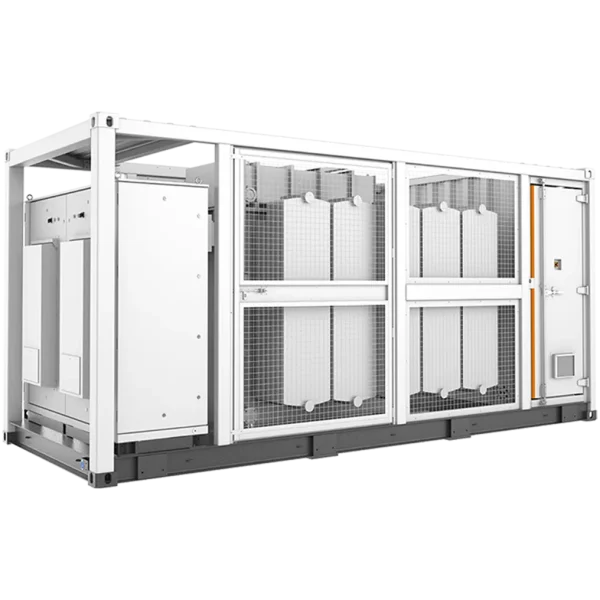

MP-MVS8960-LV-8552

MP-MVS8960-LV-8552

MV Turnkey Solution

Large utility-scale PV projects face challenges such as high upfront costs, complex MV/LV integration, and time-consuming on-site assembly.

The China Moneypro MV Turnkey Solution with SG350HX/SG350HX-20 string inverters and MVS8960-LV offers a pre-assembled, containerized system that reduces investment and accelerates commissioning for high-capacity 1500Vdc solar installations.

Category:

Share your love

High-Capacity, Cost-Efficient Deployment

Large utility-scale PV projects face challenges such as high upfront costs, complex MV/LV integration, and time-consuming on-site assembly.

The China Moneypro MV Turnkey Solution with SG350HX/SG350HX-20 string inverters and MVS8960-LV offers a pre-assembled, containerized system that reduces investment and accelerates commissioning for high-capacity 1500Vdc solar installations.

Maximizing Investment Savings

Pre-assembled containerized blocks

  • Supports up to 9.8 MW per block, reducing the number of units needed for large-scale deployment.

  • Standard container design simplifies transportation and logistics.

  • All components are pre-assembled, allowing rapid on-site setup and commissioning.

Benefits:

  • Lower capital expenditure

  • Faster project deployment

  • Simplified installation process

Safety-Centric Design

Isolated and front-accessible components

  • MV and LV isolation ensures safe operation.

  • Independent control room minimizes personnel exposure to electrical hazards.

  • Key components are front-accessible, removing the need for walk-in maintenance.

Advantages:

  • Enhanced safety for staff

  • Easier inspection and maintenance

  • Reduced operational risk

Simplified Operation & Maintenance

Modular design and smart diagnostics

  • Online analysis enables quick troubleshooting of faults.

  • Modular main devices allow rapid replacement, minimizing downtime.

Operational benefits:

  • Reduced O&M costs

  • Faster problem resolution

  • Improved system uptime and reliability

Proven Reliability

Type-tested components and standards compliance

  • All components are type-tested to guarantee performance under real-world conditions.

  • Fully compliant with IEC 60076, IEC 62271, and IEC 61439 standards.

Reliability benefits:

  • Long-term operational stability

  • Confidence in large-scale PV project performance

  • Compliance with international electrical standards

Technical Highlights

  • Rated Power: 8960 kVA

  • MV Voltage: 20–35 kV

  • Efficiency: ≥ 99%

  • Cooling Method: ONAN

Applications

Utility-Scale PV Plants

Ideal for high-capacity 1500Vdc solar farms requiring pre-assembled MV/LV turnkey solutions.

Large Block Deployment

Containerized design simplifies logistics, transportation, and on-site setup.

Safe and Reliable Operation

Front-accessible components, independent control room, and online diagnostics ensure safe and efficient O&M.

FAQ – Key Questions

Q1: What system size is supported by this solution?
Supports up to 9.8 MW per block, ideal for very large utility-scale PV installations.

Q2: How does it reduce installation costs?
Pre-assembled containerized blocks allow faster setup, reduced labor, and simplified transportation.

Q3: What safety features are included?
MV/LV isolation, independent control room, and front-accessible components ensure operational safety.

Q4: How is maintenance simplified?
Online fault analysis and modular design enable fast troubleshooting and easy replacement of main devices.

Q5: Is it compliant with international standards?
Yes. Fully compliant with IEC 60076, IEC 62271, and IEC 61439, with type-tested components.

Why Choose China Moneypro

China Moneypro delivers reliable, high-efficiency MV turnkey solutions. The SG350HX/SG350HX-20 with MVS8960-LV is ideal for 9.8 MW 1500Vdc utility-scale PV projects, offering reduced investment, rapid commissioning, safety, and simplified O&M for maximum uptime and operational efficiency.

Specifications

Type designation MVS8960-LV
Transformer
Transformer type Oil immersed
Rated power 8960 kVA @ 40 ℃
Max. power 9856 kVA @ 30 ℃
Vector group Dy11y11
LV / MV voltage 0.8 kV – 0.8 kV / ( 20 – 35 ) kV
Maximum input current at nominal voltage 3557 A * 2
Frequency 50 Hz
Tapping on HV 0, ± 2 * 2.5 %
Effciency Tier2
Cooling method ONAN ( Oil Natural Air Natural )
Impedance 9.5 % ( ± 10 % )
Oil type Mineral oil ( PCB free )
Winding material Al / Al
Insulation class A
MV switchgear
Insulation type SF6 ***
Rated voltage range 24 kV – 40.5 kV
Rated current 630 A
Internal arcing fault IAC AFL 20 kA / 1 s
LV panel
Main switch specifcation 4000 A / 800 Vac / 3P, 2 pcs
Disconnector specifcation 260 A / 800 Vac / 3P, 28 pcs
Fuse specifcation 350A / 800 Vac / 1P, 84 pcs
Protection
AC input protection Fuse+Disconnector
Transformer protection Oil-temperature, Oil-level, Oil-pressure, Buchholz
Relay protection 50 / 51, 50 N / 51 N
Surge protection AC Type I + II
General data
Dimensions (W*H*D) 6058 mm * 2896 mm * 2438 mm
Approximate weight 24 T
Operating ambient temperature range * -30 ℃ – 60 ℃ **
Auxiliary transformer supply 15 kVA / 400 V ( optional: max. 40 kVA )
Degree of protection IP54
Allowable relative humidity range (non-condensing) 0 % – 95 %
Operating altitude 1000 m ( standard ) / > 1000 m ( optional )
Communication Standard: RS485, Ethernet, Optical fber
Compliance IEC 60076, IEC 62271-200, IEC 62271-202, IEC 61439-1, EN 50588-1
