MP-HyDoc-7868

Intelligent, Safe & Data‑Driven Hydrogen Electrolyzer Monitoring

The China Moneypro HyDoc is an advanced electrolyzer digital management and monitoring system designed to enhance the visibility, safety, and performance of hydrogen electrolysis stacks in green hydrogen production plants. It provides real‑time status insight, multi‑layer protection logic, and lifecycle health assessment to optimize production efficiency and improve operational stability.

Real‑Time Monitoring & Operational Awareness

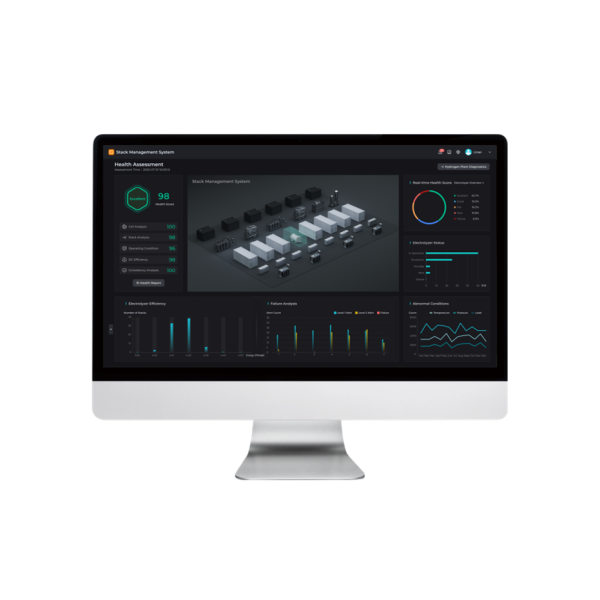

Intelligent Status Visualization

• Comprehensive status monitoring: Breaks the “black box” of stack performance by collecting and visualizing operational data from electrolyzer cells and stack subsystems.

• Data extraction and analysis: Aggregates key performance parameters to support improved decision‑making and operational control.

Benefits:

• Enhanced awareness of real‑time system conditions.

• Helps operators detect anomalies early and improve hydrogen production oversight.

Multi‑Layer Safety & Lifecycle Health Insights

Predictive Safety & Health Assessment

• Multi‑layer safety protection: Performs in‑depth data diagnostics to identify potential issues and predict failures before they impact operations.

• Five‑dimensional health evaluation: Assesses health metrics at cell‑level and stack‑level throughout the electrolysis system’s lifecycle — enabling precise optimization of performance and maintenance strategy.

Advantages:

• Improves operational reliability with predictive warning capabilities.

• Helps plan maintenance to extend electrolyzer life and reduce downtime.

Intelligent Control & Plant Integration

Designed for Modern Hydrogen Facilities

• Digital insights for operational control: Provides insights that can be integrated into broader plant control systems (e.g., site EMS or intelligent hydrogen energy management systems).

• Flexible communication interfaces: Supports common industrial communication protocols for seamless system integration.

Benefits:

• Smooth integration with other intelligent hydrogen plant components.

• Enables smarter control strategies and data‑driven optimization.

Why Choose China Moneypro HyDoc?

• Enhanced Visibility: Transforms stack operational data into actionable insights for real‑time management.

• Predictive Safety: Multi‑layer safety logic and health assessment help prevent costly failures.

• Lifecycle Health Awareness: Evaluates cell‑ and stack‑level performance over time for smarter maintenance planning.

• Seamless Integration: Supports common industrial networking and communication standards for integration with plant management systems.

Key Specifications (Example Model: SMS1000)

• System Components: Controllers, insulation detection sensors, industrial switch, etc.

• Communications:

  • RS485 – Serial communication interface

  • Ethernet / Optical fiber – High‑speed network connectivity

  • CAN, DI/DO – Flexible industrial control interfaces

• Protocols Supported: Modbus RTU, Modbus TCP, CAN2.0, IEC104, DLT645, OPC UA

• Power Supply: 220 VAC ±5 %, 50/60 Hz, ~100 W

• Environmental Range: –25 °C to 60 °C; ≤ 95 % RH; altitude ≤ 3000 m

• Protection Rating: IP66 rugged enclosure for demanding environments

• Control Cabinet (Typical): 650 mm × 650 mm × 300 mm (W×H×D)

Typical Applications

• Hydrogen Production Facilities: Provides visualized monitoring and health analysis for large alkaline or PEM electrolyzer installations.

• Renewable‑Integrated Hydrogen Plants: Works with flexible green hydrogen systems to support stable operation under variable power inputs.

• Industrial & Utility Hydrogen Stations: Helps manage complex production plants with advanced data analytics.

• Central Plant Control Systems: Acts as a digital hub feeding operational data to site EMS or plant management platforms.

FAQ – Common Questions

Q1: What is the main purpose of the HyDoc system?
China Moneypro HyDoc provides real‑time status monitoring, safety risk analysis and lifecycle health evaluation for hydrogen electrolyzers to enhance operational visibility and safety.

Q2: How does HyDoc improve electrolyzer safety?
It incorporates multi‑layer safety diagnostics and predictive analysis to detect potential issues before they escalate into failures.

Q3: Can it integrate with other plant control systems?
Yes — HyDoc supports standard industrial protocols like Modbus, CAN and OPC UA for seamless integration with broader plant management and control systems.

Q4: What environmental conditions can it operate in?
HyDoc is designed for –25 °C to 60 °C ambient temperatures, up to 95 % humidity, and altitudes up to 3000 m with an IP66 enclosure for robust protection.

Q5: Why is five‑dimensional health assessment important?
It enables tracking of performance at both cell and stack levels over time, helping optimize maintenance cycles and overall efficiency.
