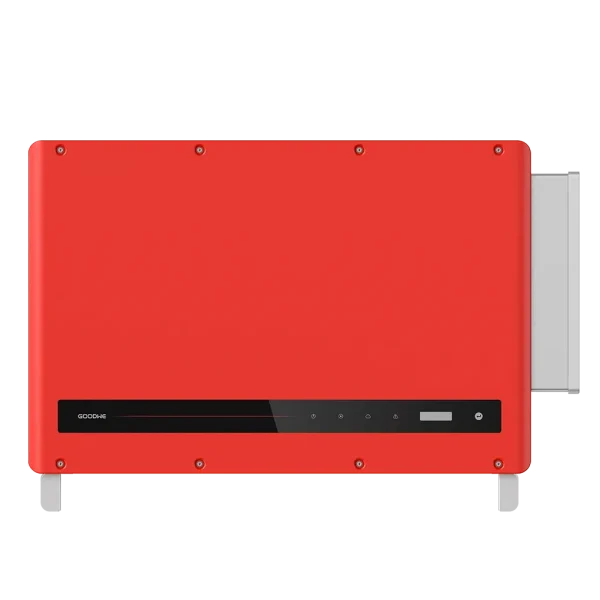

MP-HT Series 73-120kW | Three Phase Inverter-6077

MP-HT Series 73-120kW | Three Phase Inverter-6077

The China Moneypro HT Series is a high‑performance three‑phase string solar inverter designed for commercial and industrial photovoltaic systems. Engineered to deliver strong energy yields, flexible string configurations, advanced safety features, and robust outdoor durability, it provides an excellent balance of efficiency and reliability for rooftop and ground‑mounted C&I solar projects.

Category:

Share your love

Reliable, High‑Power & Scalable C&I PV Solution

The China Moneypro HT Series is a high‑performance three‑phase string solar inverter designed for commercial and industrial photovoltaic systems. Engineered to deliver strong energy yields, flexible string configurations, advanced safety features, and robust outdoor durability, it provides an excellent balance of efficiency and reliability for rooftop and ground‑mounted C&I solar projects.

Maximum Energy Harvest & Intelligent Efficiency

High PV Compatibility

  • Supports up to 200 % DC input oversizing — accommodating larger PV arrays relative to inverter rating.

  • Multi‑MPPT architecture (up to 12 MPPTs) enables flexible PV string layouts for optimal energy capture, even in shaded or multi‑orientation arrays.

  • Compatible with bi‑facial modules and high‑power PV strings for increased system generation.

  • High conversion performance with efficiency up to ~98.6 %–99.0 % depending on model variant.

Benefits:

  • Enhanced daily solar energy yield and higher return on investment.

  • Flexible system design to match varied commercial PV deployments.

Scalable Power & Flexible Integration

Designed for Mid‑Large Commercial Power Needs

  • Available power options typically range from ~73 kW to ~120 kW for standard commercial setups (higher power options available in expanded product family).

  • Compact and lightweight form factor simplifies installation on rooftops or confined spaces without compromising output power capacity.

  • Flexible output voltage support covering standard three‑phase grid levels (e.g., ~380 / 400 V).

Advantages:

  • Scalable from mid‑ to large‑capacity PV systems with flexible layout support.

  • Flexible electrical interface to meet common commercial grid requirements.

Robust Safety & Durable Design

Commercial‑Grade Protection

  • IP66 & C5 protection rating ensures strong resistance to dust, water, and corrosion for reliable outdoor operation.

  • Type II surge protection device (SPD) on both AC and DC sides guards against lightning and transient overvoltage events.

  • Built‑in internal humidity & temperature monitoring enhances long‑term reliability under varied environmental conditions.

  • Optional safety enhancements such as Arc Fault Circuit Interrupter (AFCI) and rapid shutdown support provide enhanced electrical protection layers.

Benefits:

  • Peace of mind with comprehensive environmental and electrical safeguards.

  • Enhanced system uptime and reduced field maintenance risk.

Why Choose China Moneypro HT Series?

  • High Efficiency: Conversion efficiency up to ~98.6 %–99.0 % maximizes energy utilization.

  • Flexible PV Integration: Multi‑MPPT support (up to 12 trackers) enables complex PV layouts and strong yield.

  • Robust & Reliable: IP66 & C5 environmental protection with advanced surge safeguards.

  • Commercial Scalability: Power variants suitable for a wide range of C&I installations.

Typical Applications

  • Commercial Rooftop Solar: Reliable energy generation for retail buildings, offices, and warehouses.

  • Industrial PV Systems: Designed for medium to large industrial power generation.

  • Ground‑Mounted C&I Projects: Offers flexibility for larger installations and optimized PV layouts.

  • Multi‑Orientation Array Installations: Multi‑MPPT design supports complex rooftop orientations.

FAQ – Common Questions

Q1: What power ratings does the HT Series offer?
China Moneypro HT Series typically covers ~73 kW, ~75 kW, ~80 kW, ~100 kW, ~110 kW, and ~120 kW three‑phase commercial inverter variants.

Q2: How many MPPT trackers can be supported?
Depending on the specific model, the series supports up to 12 independent MPPT trackers, enabling flexible PV string configurations.

Q3: Is this inverter suitable for outdoor installation?
Yes — the HT Series features IP66 & C5 protection ratings, which provide robust resistance to dust, water, and corrosion for reliable outdoor use.

Q4: What safety protection features are included?
Standard protections include Type II SPD surge protection on both AC and DC sides, internal humidity and temperature monitoring, and optional AFCI for enhanced electrical safety.

Q5: How does the HT Series improve energy yield?
With support for 200 % DC oversizing, multi‑MPPT trackers, and compatibility with high‑power PV modules (including bi‑facial designs), the HT Series boosts daily generation and overall system return.

Specifications

Item GW73KLV‑HT GW75K‑HT GW80K‑HT GW100K‑HT GW110K‑HT GW120K‑HT
Input
Max. Input Voltage (V) 800 1100 1100 1100 1100 1100
MPPT Operating Voltage Range (V) 180 ~ 650 180 ~ 1000 180 ~ 1000 180 ~ 1000 180 ~ 1000 180 ~ 1000
Start‑up Voltage (V) 200 200 200 200 200 200
Nominal Input Voltage (V) 370 600 600 600 600 600
Max. Input Current per MPPT (A) 30 30 30 30 30 30
Max. Short Circuit Current per MPPT (A) 45 45 45 45 45 45
Number of MPP Trackers 12 10 10 10 12 12
Number of Strings per MPPT 2 2 2 2 2 2
Output
Nominal Output Power (kW) 73 75 80 100*¹ 110 120
Nominal Output Apparent Power (kVA) 73 75 80 100*¹ 110 120
Max. AC Active Power (kW) 69@208V; 73@220V; 75@240V 75 88 110*¹ 121*¹ 132*¹
Max. AC Apparent Power (kVA) 75 75 88 110*¹ 121*¹ 132*¹
Nominal Output Voltage (V) 220V, 3L/N/PE or 3L/PE 380V/400V, 3L/N/PE or 3L/PE*² 380V/400V, 3L/N/PE or 3L/PE*² 380V/400V, 3L/N/PE or 3L/PE*² 380V/400V, 3L/N/PE or 3L/PE*² 380V/400V, 3L/N/PE or 3L/PE*²
Output Voltage Range (V) 187 ~ 242 320 ~ 440 320 ~ 440 320 ~ 440 320 ~ 440 320 ~ 440
Nominal AC Grid Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
AC Grid Frequency Range (Hz) 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65
Max. Output Current (A) 192.0 125.3 134.0 167.0 175.5 191.3
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging) ~1 (Adjustable from 0.8L to 0.8C) ~1 (Adjustable from 0.8L to 0.8C) ~1 (Adjustable from 0.8L to 0.8C) ~1 (Adjustable from 0.8L to 0.8C) ~1 (Adjustable from 0.8L to 0.8C)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 98.4% 98.6% 98.6% 98.6% 98.6% 98.6%
European Efficiency 98.1% 98.3% 98.3% 98.3% 98.3% 98.3%
Protection
PV String Current Monitoring Integrated Integrated Integrated Integrated Integrated Integrated
PV Insulation Resistance Detection Integrated Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Integrated Integrated Integrated Integrated Integrated Integrated
PV Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated Integrated
Anti‑islanding Protection Integrated Integrated Integrated Integrated Integrated Integrated
AC Overcurrent Protection Integrated Integrated Integrated Integrated Integrated Integrated
AC Short Circuit Protection Integrated Integrated Integrated Integrated Integrated Integrated
AC Overvoltage Protection Integrated Integrated Integrated Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated Integrated Integrated Integrated
DC Surge Protection Type II Type II Type II Type II Type II Type II
AC Surge Protection Type II Type II Type II Type II Type II Type II
AFCI Optional Optional Optional Optional Optional Optional
Remote Shutdown Optional Optional Optional Optional Optional Optional
PID Recovery Optional Optional Optional Optional Optional Optional
General Data
Operating Temperature Range (°C) -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Max. Operating Altitude (m) 5000 (derating >4000) 5000 (derating >4000) 5000 (derating >4000) 5000 (derating >4000) 5000 (derating >4000) 5000 (derating >4000)
Cooling Method Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling
User Interface LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP LED, LCD (Optional), WLAN + APP
Communication RS485, WiFi or 4G (Optional) RS485, WiFi or 4G (Optional) RS485, WiFi or 4G (Optional) RS485, WiFi or 4G (Optional) RS485, WiFi or 4G (Optional) RS485, WiFi or 4G (Optional)
Communication Protocols Modbus‑RTU (SunSpec Compliant) Modbus‑RTU (SunSpec Compliant) Modbus‑RTU (SunSpec Compliant) Modbus‑RTU (SunSpec Compliant) Modbus‑RTU (SunSpec Compliant) Modbus‑RTU (SunSpec Compliant)
Weight (kg) 98.5 93.5 93.5 93.5 98.5 98.5
Dimension (W × H × D mm) 1008 × 678 × 343 1008 × 678 × 343 1008 × 678 × 343 1008 × 678 × 343 1008 × 678 × 343 1008 × 678 × 343
Topology Non‑isolated Non‑isolated Non‑isolated Non‑isolated Non‑isolated Non‑isolated
Self‑consumption at Night (W) <2 <2 <2 <2 <2 <2
Ingress Protection Rating IP66 IP66 IP66 IP66 IP66 IP66
DC Connector MC4 (4 ~ 6 mm²) MC4 (4 ~ 6 mm²) MC4 (4 ~ 6 mm²) MC4 (4 ~ 6 mm²) MC4 (4 ~ 6 mm²) MC4 (4 ~ 6 mm²)
AC Connector OT/DT terminal (Max. 300 mm²) OT/DT terminal (Max. 300 mm²) OT/DT terminal (Max. 300 mm²) OT/DT terminal (Max. 300 mm²) OT/DT terminal (Max. 300 mm²) OT/DT terminal (Max. 300 mm²)
