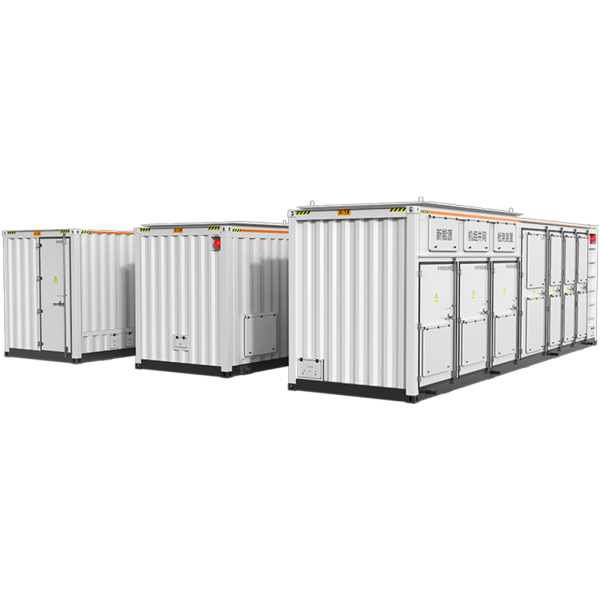

MP-GS1000 Grid Simulator-9602

Comprehensive, High‑Precision & Flexible Grid Testing Solution

The China Moneypro GS1000 Grid Simulator is an advanced grid condition simulation and test platform designed for validating and analyzing renewable energy power electronics such as wind converters, PV inverters, and energy storage systems. With high output capacity, precise waveform control, and full‑scenario adaptability, it serves R&D labs, certification centers, power electronics manufacturers, and system integrators in evaluating grid response and device compliance.

Exceptional Simulation Performance

Real‑World Grid Testing

• High single‑unit capacity: Provides up to 100 MVA output in a single unit for large‑scale grid emulation and device stress testing.

• Supports real‑time simulation of grid conditions including voltage and frequency variances, enabling accurate dynamic response analysis for wind, solar, and ESS applications.

• High waveform precision with low distortion provides repeatable and reliable results for compliance testing.

Benefits:

• Evaluate how power conversion systems respond to transient grid events like faults and unbalances.

• Essential tool for product development, testing labs, and certification workflows.

Flexible & Efficient Testing Capabilities

Wide Scenario Adaptability

• Supports tests across various renewable domains — wind turbines, PV inverters, ESS inverters, and hybrid systems — in one all‑in‑one platform.

• Includes continuous fault ride through, voltage deviation, frequency deviation, voltage unbalance, impedance scanning, and primary frequency / inertia response simulations.

• Designed for both construction grid emulation and synchronous grid follow‑up testing, enabling deep performance characterization.

Advantages:

• Facilitates verification of grid adaptability and compliance with local and international standards.

• Accelerates product validation and certification processes.

Robust & Modular Architecture

Engineered for High‑Demand Lab Use

• Modular design: Scales from smaller test capacities up to tens of MVA for diverse test bench layouts.

• Modular cascade topology with energy feedback improves efficiency and supports regenerative testing capabilities.

• Flexible input/output voltage ranges and output frequency ranges cover 0–150 % voltage and 45–66 Hz frequency targets for broad grid simulation requirements.

• Support for voltage precision (≤ 0.2 %), frequency precision (≤ 0.005 Hz), and harmonic/shimmer performance ensures high‑quality output signals.

Benefits:

• High‑fidelity grid emulation for accurate performance assessment.

• Efficient operation with modular build and scalable capacities.

Why Choose China Moneypro GS1000?

• All‑in‑one Testing: Simulates a wide variety of grid conditions across wind, PV and energy storage systems.

• High Output Capacity: Up to 100 MVA single‑unit output supports large‑scale test requirements.

• Precise Simulation: High waveform accuracy and broad parameter range for thorough testing.

• Modular & Flexible: Adaptable configuration from medium to high‑power test environments.

• Full Grid Scenario Support: Including fault ride through, frequency/voltage deviations, unbalance and impedance tests.

Key Specifications (Typical)

• Output Capacity: Up to 100 MVA (single unit) with modular scaling.

• Voltage Range: 0–150 % nominal output voltage.

• Frequency Range: 45–66 Hz output frequency.

• Voltage Precision: ≤ 0.2 % typical.

• Frequency Precision: ≤ 0.005 Hz typical.

• Output Harmonic Distortion: ≤ 0.2 % typical (voltage).

• Output Interharmonic Precision: ≤ 0.05 % typical.

• Flicker (Pst): ≤ 0.1 typical.

• Voltage Levels: Configurable from 380 V to 35 kV.

• Cooling: Air‑cooled or liquid‑cooled options.

• Protection Rating: IP55 outdoor‑ready enclosure.

Typical Applications

• R&D and Verification Labs: Performance testing, stress testing and certification of renewable converter systems.

• Certification and Test Centers: Grid code compliance and dynamic ride‑through validation.

• Manufacturer Test Bench: Development and regression testing for wind turbine converters, PV inverters and ESS systems.

• System Integration Validation: Integrated tests for hybrid renewable systems under simulated grid events.

FAQ – Common Questions

Q1: What grid conditions can the GS1000 simulate?
It supports voltage deviations, frequency deviations, unbalance, impedance scanning, continuous fault ride through, and dynamic responses such as inertia and primary frequency control.

Q2: What power levels does the simulator support?
It can be configured for modular capacities up to 100 MVA with output voltage ranges from 380 V to 35 kV.

Q3: Is this suitable for PV and ESS testing?
Yes — the GS1000 is designed as an all‑in‑one platform for wind, PV, and ESS power electronics validation.

Q4: Does it support fault testing?
Yes — it includes low/high/zero voltage ride through, continuous multiple fault ride through, and other common grid fault scenarios.
