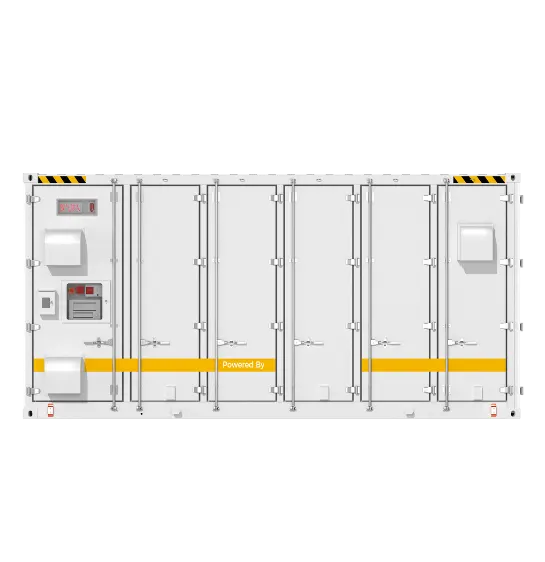

MP-ASTER 5000 Liquid Cooling Utility Scale Energy Storage System-6423

Advanced, High‑Density & Reliable Grid‑Scale Energy Storage

The China Moneypro ASTER‑5000 is a modular utility‑scale energy storage system designed for large‑capacity applications, grid support, and renewable integration. With high energy density in a standard 20‑ft container, advanced liquid cooling, intelligent battery management, and robust safety protections, it offers efficient long‑duration storage and simplified deployment for utility and industrial projects.

High‑Density Energy & Efficient Thermal Management

Compact Design with Liquid Cooling

• Offers up to 5.015 MWh nominal capacity in a single 20‑ft container.

• Integrated liquid cooling system delivers efficient and uniform thermal regulation, supporting stable operation under extreme conditions.

• Intelligent cooling modes include cooling, heating, circulation, and automatic coolant replenishment for long‑term maintenance efficiency.

Benefits:

• High energy density reduces footprint and site requirements.

• Advanced thermal control prolongs battery life and performance.

Strong Safety & Industrial‑Grade Reliability

Designed for Utility Environments

• IP55 protection rating for outdoor container deployment.

• Multi‑layer safety architecture including aerosol fire suppression, explosion vents, and real‑time monitoring systems.

• Operates reliably across a wide temperature range (–40 °C to +50 °C) with low‑noise ventilation systems.

Advantages:

• Comprehensive protections for personnel and assets.

• Industrial readiness for continuous utility operation.

Intelligent Management & Active Balancing

Advanced Battery Control

• Proprietary Active Balancing technology redistributes energy across cells in real time, improving efficiency and reducing imbalance losses.

• Up to 23× faster balancing performance compared to traditional passive systems, extending battery life by over 10 %.

• Cloud‑enabled monitoring lets operators view system status and alerts remotely.

Benefits:

• Enhanced system reliability and longer service life.

• Lower operational costs and higher energy availability.

Modular & Easy Deployment

Scalable for Large Projects

• Integrated design simplifies installation and reduces onsite commissioning time.

• Modular container architecture enables flexible layout and rapid deployment across utility storage sites.

• External maintenance access improves serviceability and uptime.

Advantages:

• Flexible sizing for project‑specific requirements.

• Efficient system maintenance with reduced site intervention.

Why Choose China Moneypro ASTER‑5000?

• High Energy Capacity: Up to 5.015 MWh in a compact 20‑foot container.

• Advanced Thermal Management: Liquid cooling with automated coolant handling.

• Industrial‑Grade Safety: Multi‑tier protections and global compliance.

• Active Battery Balancing: Improves performance and extends service life.

• Simplified Deployment: Integrated design and external maintenance layout.

Key Specifications

• System Nominal Capacity: 5.015 MWh (typical model)

• Container Dimensions: 6058 × 2438 × 2896 mm (20 ft container)

• Battery Chemistry: LiFePO₄ (LFP)

• Protection Rating: IP55 (system); IP67 (individual battery module)

• Operating Temperature: –40 °C to +50 °C (environment)

• Battery Module: 332.8 V, 104.4 kWh units

• Cooling System: Liquid cooling with intelligent modes

• Safety Features: Multi‑stage aerosol fire suppression, explosion venting, real‑time monitoring

Typical Applications

• Grid Peak Shaving & Load Shifting: Level load demand and reduce peak energy costs.

• Renewable Integration: Smooth integration with large PV and wind farms.

• Frequency Regulation & Ancillary Services: Support grid stability and dynamic response.

• Long‑Duration Storage Projects: Ideal for 4+‑hour discharge applications.

FAQ – Common Questions

Q1: What is China Moneypro ASTER‑5000?
China Moneypro ASTER‑5000 is a utility‑scale liquid‑cooled energy storage system designed for large‑capacity applications, combining high density, advanced thermal management, and intelligent battery control.

Q2: What energy capacity does it offer?
The ASTER‑5000 provides up to 5.015 MWh of nominal energy storage in a single container unit.

Q3: How does Active Balancing improve performance?
Active Balancing redistributes charge in real time across cells, delivering up to 23× faster balancing, reducing energy loss, and extending battery life by more than 10 %.

Q4: Is the system suitable for outdoor utility deployment?
Yes — with IP55 protection, robust safety design, and liquid cooling, the ASTER‑5000 is built for outdoor utility environments.

Q5: What applications is ASTER‑5000 ideal for?
It’s ideal for grid peak shaving, renewable integration, frequency regulation, and long‑duration energy storage projects where high capacity and reliability are required.
