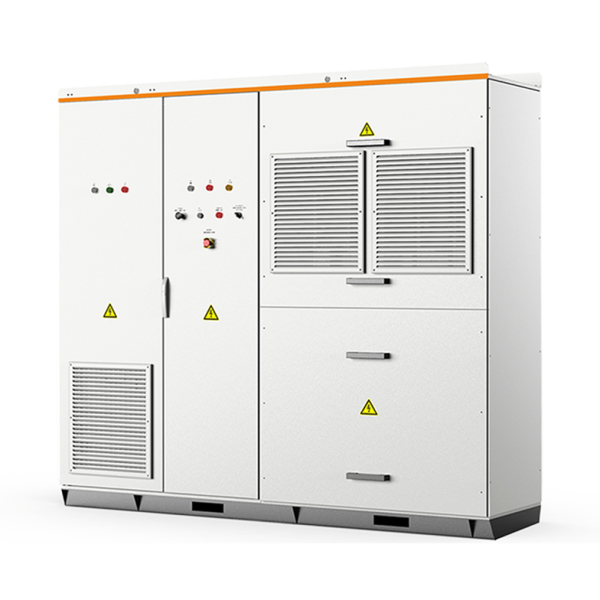

MP-690V-3/6MW Doubly-Fed & Full Power Conveter-5906

Reliable, High‑Efficiency & Grid‑Ready Wind Converter Solutions

The China Moneypro Wind Power Converter Series combines advanced doubly‑fed and full‑power conversion technologies to support modern wind turbine power electronics. Designed for onshore and offshore wind farms, this versatile converter portfolio delivers flexible power ranges, robust environmental resilience, and cutting‑edge grid performance — enabling stable, efficient wind power integration across global wind energy projects.

Comprehensive Conversion for Wind Turbines

Doubly‑Fed Conversion Technology

• Supports a wide power range from ~1.5 MW up to ~15 MW to match turbines of various scales.

• High protection grade with IP54 enclosure for reliable operation in harsh environments.

• Available with multiple cooling options (air or liquid cooling) to suit site conditions.

Benefits:

• Smooth and efficient control of generator‑side power across variable wind speeds.

• Compatible with medium‑ and high‑voltage wind turbine architectures.

Full Power Conversion Technology

• Full‑power converters provide complete decoupling of generator and grid networks, enabling high‑performance grid management.

• Offered in multiple power ratings and voltage levels (e.g., 690 V, 1140 V, 1800 V systems).

• Designed for both onshore and offshore high‑power wind turbines.

Advantages:

• Enhanced power quality and grid compliance for demanding network requirements.

• Supports broad grid codes and frequency support functions.

Robust & Environment‑Ready Design

Engineered for Complex Wind Environments

• Built to handle –30 °C to +50 °C ambient temperatures and up to high altitudes (~5,200 m) for global deployment.

• IP54 protection ensures dust/water resistance and durable long‑term outdoor reliability.

• Supports extensive range of power levels and voltage grades including 690 V, 950 V, 1140 V, 1800 V, and 3300 V.

Benefits:

• High operational reliability under extreme climatic conditions.

• Flexibility to serve global wind projects across multiple continents.

Intelligent Grid Interaction & Control

Advanced Grid Function Support

• Integrated grid‑forming ready technologies enhance stability in weak grid or isolated applications.

• Supports modern grid codes and reactive power control to assist system operators.

• Designed for seamless integration with turbine control systems and SCADA networks.

Advantages:

• Improves wind farm grid response and compliance.

• Enhances overall energy quality and system resilience.

Why Choose China Moneypro Wind Power Converter?

• Wide Power Range: Supports wind converters from ~1.5 MW to ~15 MW per unit for diverse turbine capacities.

• Dual Conversion Technologies: Both doubly‑fed and full power options to meet varied control strategies.

• Robust Protection: IP54 rating and environmental tolerance for long‑term outdoor use.

• Flexible Cooling: Air and liquid cooling options available to adapt to site constraints.

• Global Deployment: Proven in wind farms worldwide with strong performance records.

Key Specifications

• Converter Types:

  • Doubly‑Fed Wind Converter: ~1.5 MW – ~15 MW, medium voltage options.

  • Full Power Wind Converter: ~5 MW – ~26 MW (higher power models available).

• Rated Voltage Levels: 690 V, 950 V, 1140 V, 1800 V, 3300 V.

• Protection Rating: IP54 weather and dust protection.

• Operating Temp.: –30 °C to +50 °C.

• Altitude Capability: Up to ~5200 m in extreme conditions.

• Cooling Options: Air cooling and liquid cooling variations.

• Grid Support: Grid‑forming, reactive power control, weak grid readiness.

Typical Applications

• Onshore Wind Farms: Supports medium and large wind turbines with efficient conversion.

• Offshore Wind Projects: High‑power full conversion suitable for marine conditions.

• High‑Altitude Installations: Designed for extreme elevation wind farms.

• Weak Grid Zones: Grid‑forming features improve stability in remote networks.

FAQ – Common Questions

Q1: What types of wind converters are available in this series?
This series includes both doubly‑fed wind converters and full power wind converters with adaptable power ranges.

Q2: How wide is the power coverage for these converters?
Converters span approximately 1.5 MW–15 MW (doubly‑fed) and larger full‑power units extending up to ~26 MW and beyond.

Q3: Is this equipment suitable for harsh environments?
Yes — designed for wide temperature ranges (–30 °C to +50 °C) and high altitudes (up to ~5200 m) with IP54 protection.

Q4: What cooling methods are supported?
Both air cooling and liquid cooling options are available to meet different site and climate requirements.

Q5: How does this help grid integration?
The converters include grid‑forming technology and reactive power control to enhance stability and compliance with modern grid requirements.
