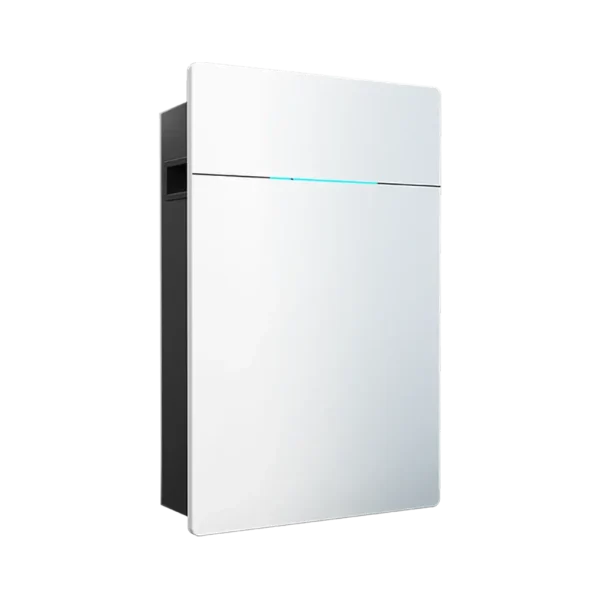

MP-5.12kWh SBS050 Residential High Voltage LFP Battery-6890

Compact & Scalable Storage for Modern Homes

The China Moneypro SBS050 is a high?voltage residential lithium battery system engineered to deliver flexible energy storage, safe operation, and simplified installation for household PV + storage systems. With a slim form factor and scalable design, the SBS050 lets you start with a small battery and expand as your energy needs grow ?? making it ideal for both new installations and retrofit projects.

Flexible Expansion & Design

Tailored to Your Home??s Needs

• Modular capacity: Each unit provides 5.12?kWh usable energy, with the option to connect up to 4 units in parallel for a total capacity of ~20.48?kWh.

• Plug?and?play setup: Slim and easy to install, supporting both wall?mounted and floor?standing configurations without extra junction boxes.

• Space?saving profile: With only 182?mm depth, the design fits into compact indoor or sheltered outdoor spaces.

Benefits:

• Enables flexible storage configurations depending on household demand.

• Expandable over time without complex system redesign.

• Suitable for tight spaces thanks to slim design.

High Performance & Reliable Delivery

Built for Daily Use

• LFP (Lithium Iron Phosphate) battery cells provide high safety, thermal stability, and long service life.

• Designed for up to 50?A charge/discharge current, allowing effective cycling and support for typical residential loads.

• 100?% usable energy per module ?? no capacity is unusable due to design limitations.

Advantages:

• Efficient daily cycling with minimal energy waste.

• Stable and durable performance backed by advanced cell technology.

Safety & Smart Integration

Protection & Monitoring

• IP55 / C5 protection rating guards against dust, water, and corrosion ?? suitable for indoor or sheltered outdoor installation.

• Built?in advanced safety mechanisms include temperature regulation, overcurrent protection, and contactor abnormal defense.

• Compatible with iSolarCloud App for real?time monitoring of energy generation, storage status, and performance metrics.

Benefits:

• Enhanced operational safety through multi?layer protection.

• Remote monitoring simplifies system management and O&M.

Why Choose China Moneypro SBS050?

• Modular & Scalable: Starts at 5.12?kWh and expands up to ~20.48?kWh with up to four units in parallel.

• High Performance: Supports up to 50?A charge/discharge, enabling reliable energy delivery.

• Compact & Aesthetic: Slim profile fits neatly in homes with limited space.

• Safe & Durable: LFP battery chemistry with IP55 protection and multiple safety features.

• Smart Monitoring: Real?time insights via iSolarCloud enhance visibility and control.

Key Specifications

• Usable Energy (per Unit): 5.12?kWh

• Scalable Total Capacity: Up to ~20.48?kWh (1?C4 units in parallel)

• Nominal Voltage: ~102.4?V (typical high?voltage)

• Operating Voltage Range: ~86.4?V ?C ~116.8?V

• Max. Charge / Discharge Current: 50?A

• Installation: Wall / Floor Mountable (plug?and?play)

• Protection Class: IP55 / C5

• Battery Cell Type: LFP (Lithium Iron Phosphate)

Typical Applications

• Residential Solar + Storage: Store excess PV energy for use in evenings or peak times.

• Backup Power Support: Seamless switchover during grid outages when used with hybrid inverters.

• Flexible Home Storage: Expand capacity as household energy demands change.

• Smart Energy Management: Integrates into cloud?connected systems for remote monitoring and control.

FAQ ?C Common Questions

Q1: What is the energy capacity of one SBS050 unit?
Each unit delivers about 5.12?kWh of usable energy.

Q2: Can I expand the SBS050 capacity later?
Yes ?? you can connect 1 to 4 units in parallel, achieving up to ~20.48?kWh of total storage.

Q3: What type of battery cells does it use?
It uses LiFePO? (Lithium Iron Phosphate) cells for safety and long service life.

Q4: Is the SBS050 suitable for outdoor installation?
Yes ?? with an IP55 / C5 rating, it offers resistance to dust, water, and corrosion for indoor or sheltered outdoor use.

Q5: How can I monitor the battery system?
You can monitor energy generation, storage status, and performance via the iSolarCloud App.
