MP-2*Apex 300+2*B300K+Hub A1-2213

MP-2*Apex 300+2*B300K+Hub A1-2213

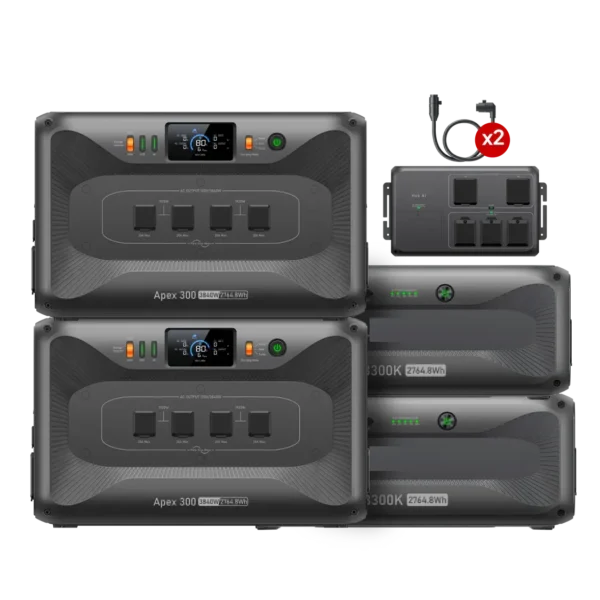

The China Moneypro 2×Apex 300 + 2×B300K + Hub A1 is a modular high‑capacity energy storage and power system designed to deliver robust portable power for home backup, off‑grid living, RV/van life, and high‑demand applications. With parallel connection for dual inverters, expandable battery capacity, and advanced LiFePO₄ chemistry, it offers strong power output and long‑lasting energy storage for multiple usage scenarios.

Category:

Share your love

High Performance & Scalable Power

Double Inverter & Massive Output

  • Parallel Output: Two Apex 300 units connected via Hub A1 deliver up to 7,680 W continuous AC output — ideal for powering appliances, HVAC units, power tools, and more.
  • Expandable Storage: With two B300K expansion batteries, the total system capacity reaches around 11,059.2 Wh, providing extended runtimes.
  • Modular Architecture: Start with this configuration and expand further with more Apex 300 units or additional batteries for even larger systems.

Benefits:

  • High‑power support for heavy electrical loads.
  • Scalable storage for extended off‑grid autonomy.
  • Flexible configuration for future expansion.

Intelligent Energy Management

Smart Control & Backup Features

  • UPS‑Ready Performance: Quick switchover ensures essential loads stay powered during outages.
  • App Monitoring: Optional China Moneypro app connectivity allows real‑time system monitoring and control from your smartphone.
  • Automatic Power Distribution: Smart power management balances energy flows between sources, batteries, and loads.

Benefits:

  • Seamless transition to battery power during grid loss.
  • Remote performance tracking & alerts.
  • Efficient energy prioritization and dispatch.

Durable & Reliable Battery Design

Long Lifespan LiFePO₄ Chemistry

  • LiFePO₄ Battery System: Automotive‑grade cells built for reliability and long life.
  • Cycle Durability: Designed for thousands of cycles with stable performance over time.
  • Robust Construction: Durable hardware suited for frequent use in varied environments.

Advantages:

  • Years of dependable energy storage without rapid degradation.
  • Reduced long‑term replacement costs.
  • Stable performance under load.

Why Choose China Moneypro 2×Apex 300 + 2×B300K + Hub A1

  • Large Continuous Output: Up to 7,680 W total system power for high‑demand applications.
  • Huge Energy Storage: Around 11,059 Wh with included expansion batteries.
  • Expandable Ecosystem: Build larger systems with additional units and batteries.
  • Smart Energy Control: Intelligent power management and backup readiness.
  • Durable & Long‑Life: LiFePO₄ battery technology for extended lifespan.

Key Specifications

Parameter Specification
Continuous Output Power Up to 7,680 W (2× Apex 300 in parallel)
Total Storage Capacity ~11,059 Wh (2× B300K)
Battery Chemistry LiFePO₄ (Long cycle life)
System Scalability Parallel inverter + multi‑battery support
Control & Monitoring App connectivity & UPS‑ready features
Application Scenarios Home backup, off‑grid, RV/van life, heavy loads

Typical Applications

  • Home Backup & Emergency Power: Keeps essentials and appliances running during outages.
  • Off‑Grid Living & Remote Sites: Reliable energy storage where grid power isn’t available.
  • RV, Van & Outdoor Adventures: Portable, high‑capacity power for mobile lifestyles.
  • High‑Demand Loads: Tools, HVAC, kitchen appliances and more.

FAQ – Common Questions

Q1: What total output power can this system deliver?
With two Apex 300 units in parallel using the Hub A1, the system can deliver up to 7,680 W continuous AC output — suitable for heavy loads and multiple appliances.

Q2: How much energy storage does this configuration provide?
With two B300K expansion batteries, this setup offers around 11,059.2 Wh of usable energy, ideal for extended usage and long runtimes.

Q3: What is the main role of the Hub A1?
The Hub A1 parallel connection box allows two Apex 300 units to work together, combining power output and integrating multiple batteries into a single system.

Q4: Is this system suitable for home backup?
Yes — the high power capacity and smart UPS features make it suitable for whole‑home backup or partial load support during grid outages.

Q5: Can the system be expanded further?
Yes — the modular design supports adding more Apex 300 units and batteries for larger power and capacity configurations.

Specifications

Category Item Specification
Battery Info Battery Type LiFePO₄
Cycle Life 6,000+ cycles to 80% original capacity
Shelf-life Recharge to 40%-60% every 3–6 months
Management System MPPT controller, BMS, etc.
Output Capacity 2,764.8 Wh (51.2 V / 54 Ah)
Inverter Type Pure sine wave
Lifting Power 7,680 W
USB-C Port 2 × 100 W Max (Requires Hub D1 700W)
USB-A Port 2 × 15 W, 5V/3A (Requires Hub D1 700W)
AC Outlets 4 × AC Outlet (20A)
1 × NEMA TT-30R (120V/30A)
1 × NEMA 14-50R (120/240V, 50A)
3,840 W Max. in total
Cigarette Lighter / DC5521 2 × 12V/10A; 24V/5A (Requires Hub D1 700W)
Anderson Port 1 × 12V/50A; 24V/25A (Requires Hub D1 700W)
Input Turbo Charging 3,840 W Max (80% in 45 min @ 59–77°F / 15–25°C)
AC Input 120 V, 50/60 Hz, 15 A Max; 1,800 W Max. with bypass
Solar Input 2 × 1,200 W, 12–60 VDC, 2 × 20 A
Car Input 12V or 24V via cigarette lighter port
Maximum Input Apex 300: 3,840 W Max; Apex 300 + 1–6 B300K: 6,240 W Max
General App Control Yes, via Wi-Fi & Bluetooth
Scalability Up to 6 × B300K / B300S / B300 per unit
Pass-through Charging Yes
Weight 83.78 lbs / 38 kg
Dimensions (L × W × H) 20.67 × 12.87 × 12.6 in (525 × 327 × 320 mm)
Charging Temperature 32°F to 104°F / 0°C to 40°C
Discharging Temperature -4°F to 104°F / -20°C to 40°C
Storage Temperature -4°F to 104°F / -20°C to 40°C
Certification FCC, UL, TELEC, CE, NTC, RCM, LOA, ICASA
Warranty 5 Years
