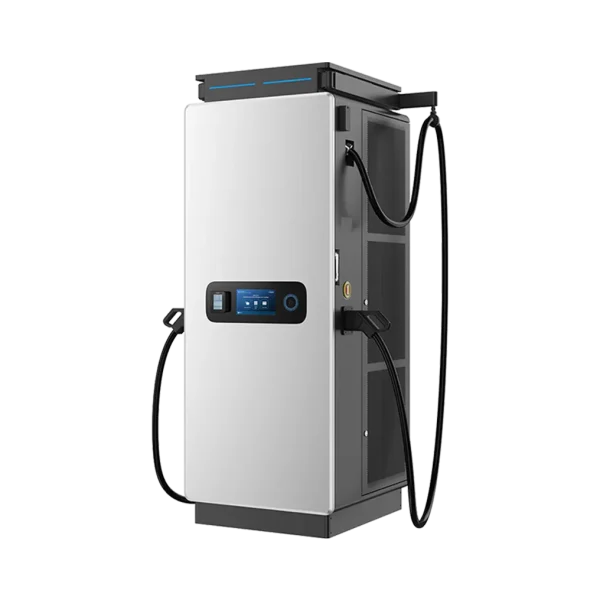

MP-240/320/360/400/480kW IDC480E-C Isolated Air-cooling Ultra-fast Compact DC Charger-8548

Scalable, Intelligent & Compact High‑Power Charging

The China Moneypro IDC480E‑C is a modular DC ultra‑fast EV charger engineered for commercial, public, and urban charging environments that demand flexible power delivery and future‑ready scalability. With a compact design, isolated air‑cooling architecture, and powerful expansion options from 240 kW up to 480 kW, it supports dynamic charging needs while offering robust protection and smart operation features.

Ultra‑Fast Charging with Modular Scalability

Flexible Power Outputs

• Configurable DC charging power options: 240 kW, 320 kW, 360 kW, 400 kW, 480 kW — adapt system capacity to site requirements.

• Adaptive output voltage range 150 – 1000 VDC for broad EV compatibility.

• Modular power architecture allows adding or rearranging power modules easily to expand capacity without costly replacements.

Benefits:

• Supports diverse charging scenarios — from urban stations to high‑throughput public hubs.

• Future‑proof design enables incremental upgrades.

Robust & All‑Weather Industrial Design

Built for Long‑Term Operation

• Isolated air‑cooling technology with sealed chambers delivers uniform heat management and reduced maintenance.

• IP65 rainproof & dustproof rating plus C5 anti‑corrosion ensures dependable outdoor performance.

• Designed for over 10 years service life with AI‑optimized lifecycle management for module reliability.

Advantages:

• High durability in harsh climates and coastal locations.

• Lower total cost of ownership due to reduced upkeep.

Smart Operation & Connectivity

Intelligent Features for Modern Charging

• Multiple authentication & payment methods such as RFID, QR code, credit card, and Plug & Charge support flexible use cases.

• Dynamic power allocation for optimized load management and efficient grid utilization.

• Remote monitoring and updates via WLAN/Ethernet/4G, with support for OCPP 1.6J and ready for upcoming OCPP 2.0.1.

Benefits:

• Enhanced charging station uptime and user management.

• Integration readiness for smart fleet and station operator platforms.

Flexible Installation & Dispenser Options

Configurable Charging Layout

• CCS2 connector standard ensures broad compatibility with DC‑capable EVs.

• Standard floor‑mounted installation with optional cable configurations (5 m standard, 7 m optional).

• Supports up to 4 connectors via air‑cooled dispensers and up to 3 connectors with optional liquid‑cooled dispensers, enabling multi‑vehicle charging setups.

Advantages:

• Adaptable to varying site footprints and charging demand patterns.

• Improved accessibility for drivers and fleet operations.

Why Choose China Moneypro IDC480E‑C?

• Modular Power Capacity: Scales from 240 kW up to 480 kW to meet future needs.

• Advanced Thermal Management: Isolated air‑cooling for efficient heat control and longevity.

• All‑Weather Protection: IP65 and C5 anti‑corrosion for reliable outdoor use.

• Smart & Connected: Multiple authentication options and remote platform support.

• Flexible Deployment: Configurable dispensers and scalable design for different charging environments.

Key Specifications

• DC Output Power Options: 240 kW / 320 kW / 360 kW / 400 kW / 480 kW

• Voltage Range: 150 – 1000 VDC

• Connector Type: CCS2 (DC)

• Adaptive Loading: Dynamic allocation by 40 kW granularity

• Protection & Durability: IP65, C5 corrosion, IK10/IK8 impact protection

• Authentication & Access: RFID, Plug & Play, QR, Plug & Charge (optional), credit/debit card (optional)

• Communication: WLAN, Ethernet, 4G; OCPP 1.6J (ready for OCPP 2.0.1)

• User Interface: 10‑inch color touchscreen

• Installation: Floor‑mounted charging station (≤950 kg)

• Operating Temp.: –35 °C to +55 °C

Typical Applications

• DC Ultra‑Fast Public Charging Stations: High‑throughput pricing points for city, highway, and retail hubs.

• Commercial & Fleet Charging: Suitable for logistics depots, delivery fleets, and shared vehicle applications.

• Destination Charging: Services at shopping centers, parking facilities, and transport interchanges.

• PV + ESS Integrated Charging Solutions: Designed for green energy ecosystems with solar and storage system support.

FAQ – Common Questions

Q1: What charging power options does the IDC480E‑C support?
It supports modular DC output configurations from 240 kW up to 480 kW.

Q2: Can it handle multiple vehicles at once?
Yes — with configurable dispensers, the charger can support multiple connectors (up to 4 air‑cooled or up to 3 liquid‑cooled) for concurrent vehicle charging.

Q3: Is it suitable for outdoor installation?
Yes — built with IP65 and C5 anti‑corrosion rating, it is engineered for reliable outdoor conditions.

Q4: What authentication methods are supported?
Supports RFID, QR code, Plug & Charge, and optional credit/debit card authentication.

Q5: Does it support smart platform connectivity?
Yes — it offers remote communication via WLAN/Ethernet/4G and supports OCPP 1.6J, ready for future upgrade to OCPP 2.0.1.
